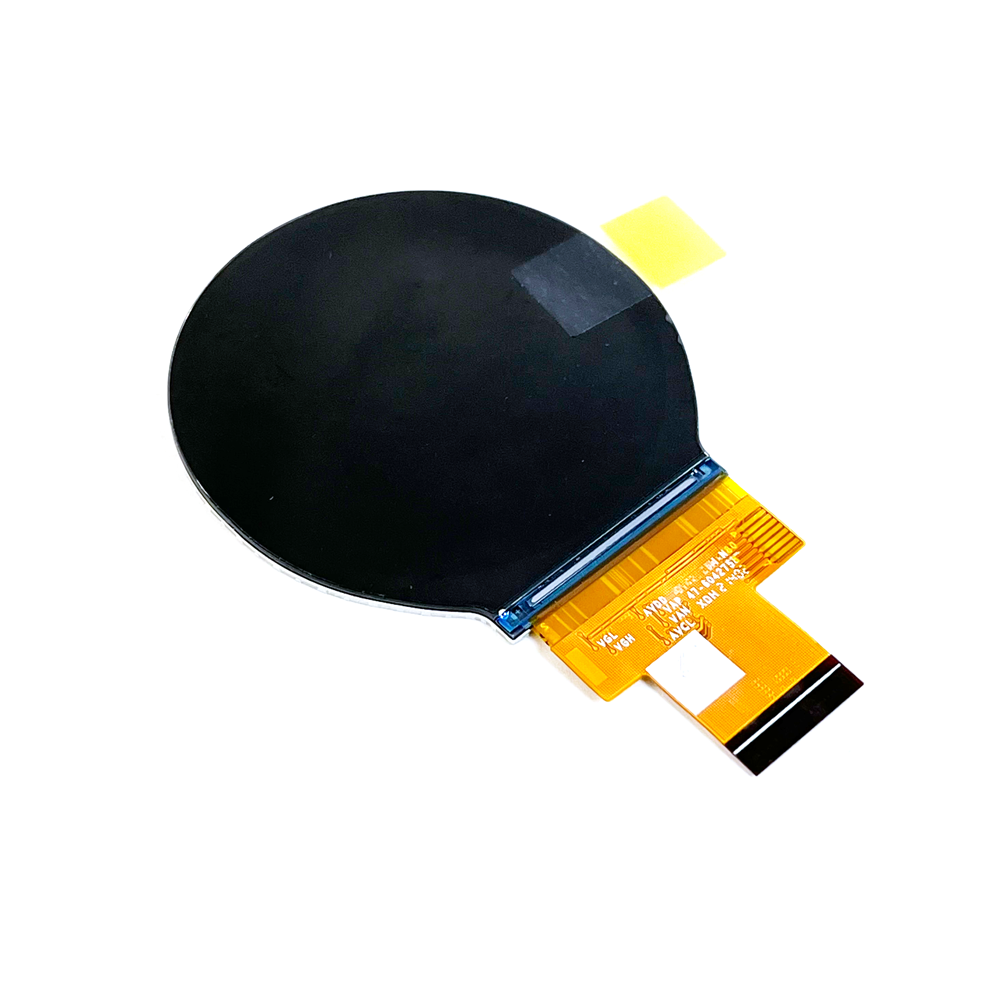

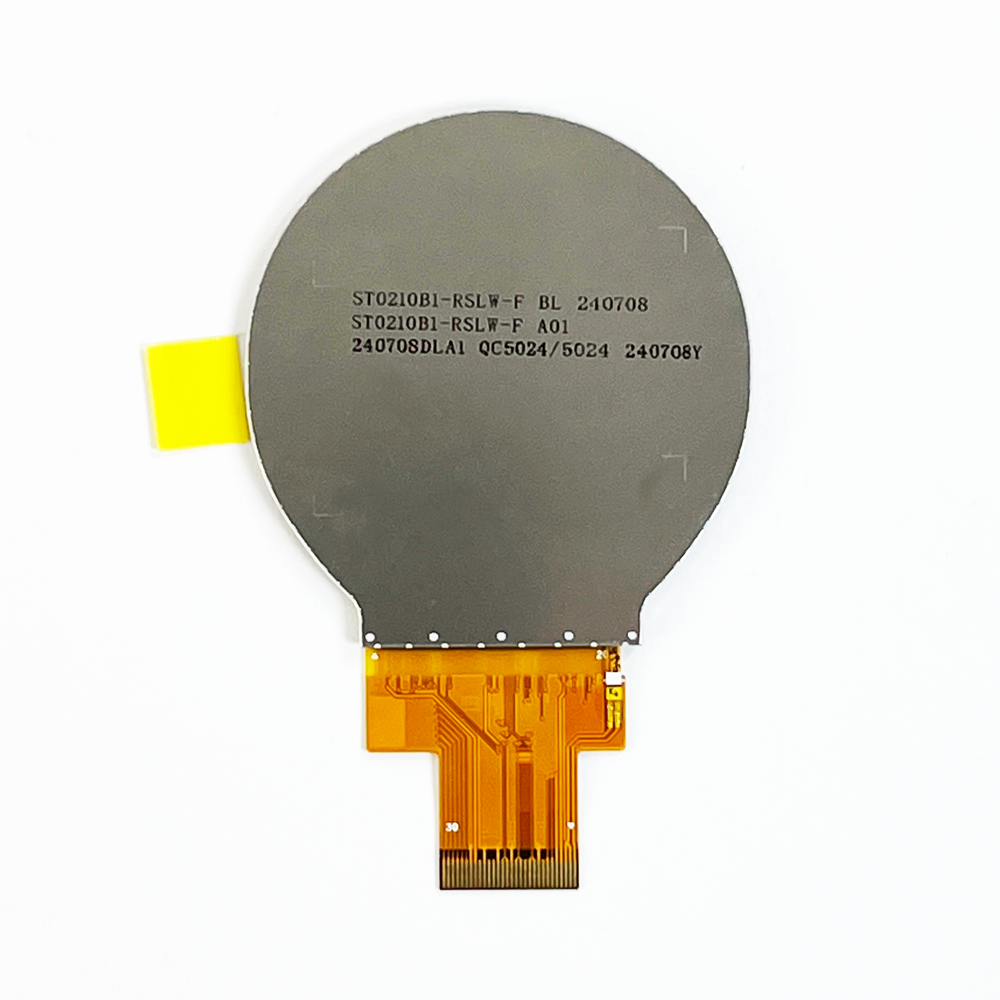

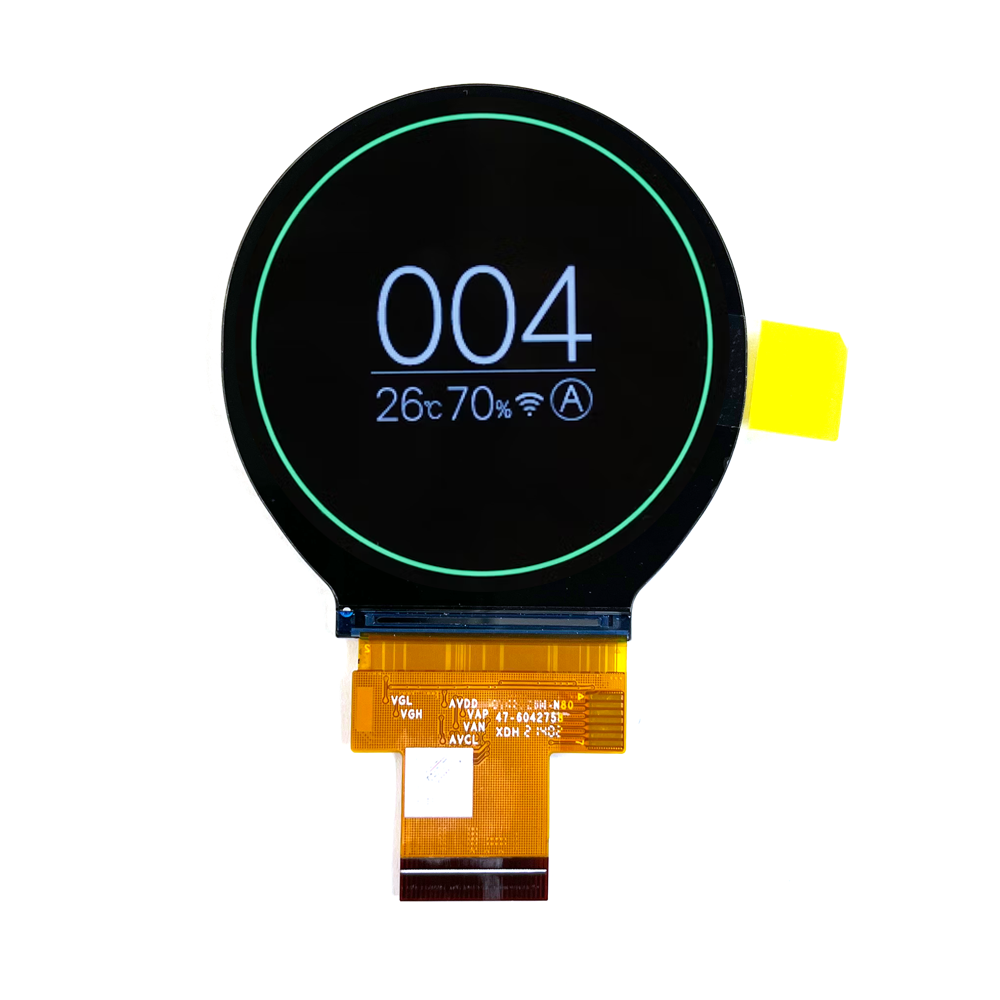

2.1" Round TFT LCD Module (480 x 480) [ST0210B1-RSLW-F]
2.1" Round TFT LCD Module (480 x 480) [ST0210B1-RSLW-F]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.
SKU:ST0210B1-RSLW-F
Spec Overview
| Size | 2.1" |
| Resolutions | 480 x 480 |
| Panel Type | Circular / Round |
| Santek Model No. | ST0210B1-RSLW-F |

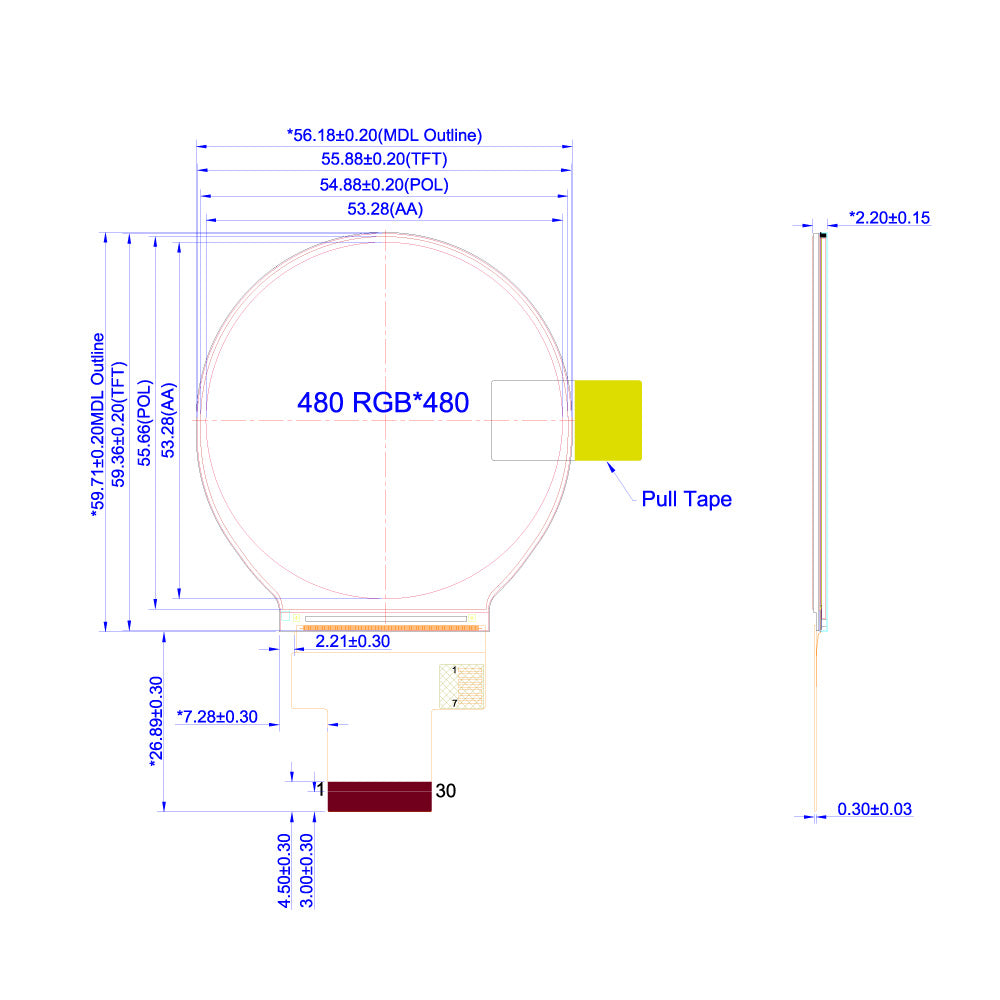

| Module Size (W x H x T mm) |
55.88 x 59.36 x 0.80 |
| Active Area (W x H mm) |
53.28 x 53.28 |
| Interface | MIPI |
| Brightness | 350 cd/㎡ |
| Operating Temperature | -20 ~ 70 °C |
| Viewing Angle | Wide (All Direction) |
Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
![2.1" Round TFT LCD Module (480 x 480) [ST0210B1-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0210B1-RSLW-F-1.png?v=1722472561&width=1445)
![2.1" Round TFT LCD Module (480 x 480) [ST0210B1-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0210B1-RSLW-F_RS01.jpg?v=1722558752&width=1445)
![2.1" Round TFT LCD Module (480 x 480) [ST0210B1-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0210B1-RSLW-F-3.png?v=1722472565&width=1445)
![2.1" Round TFT LCD Module (480 x 480) [ST0210B1-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0210B1-RSLW-F-2.png?v=1722472565&width=1445)
