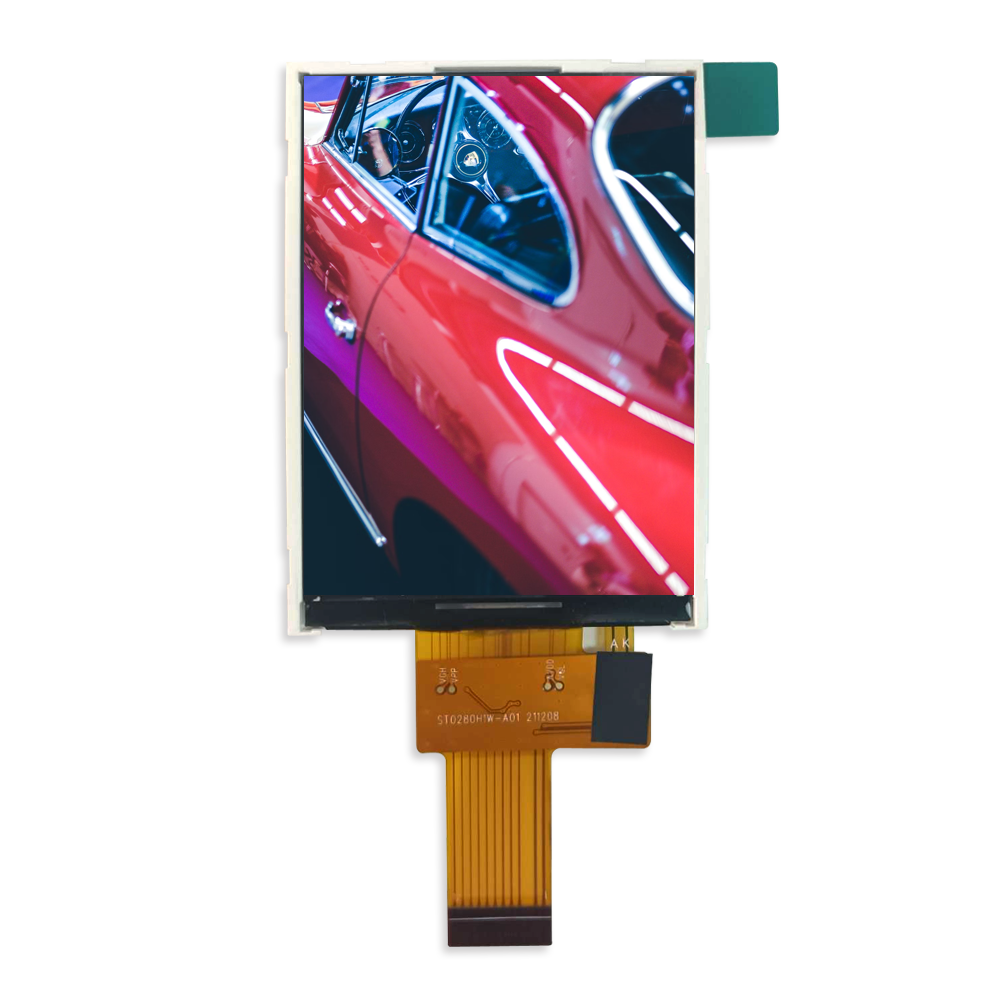

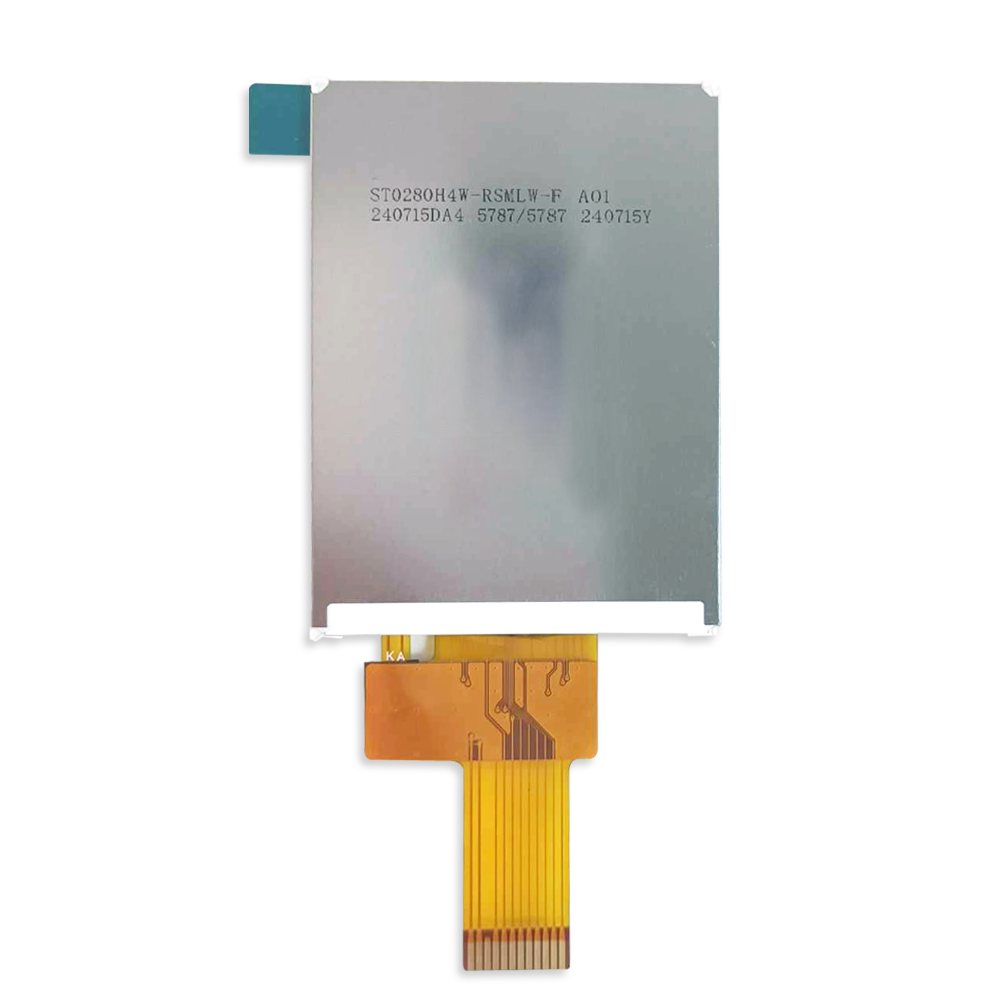

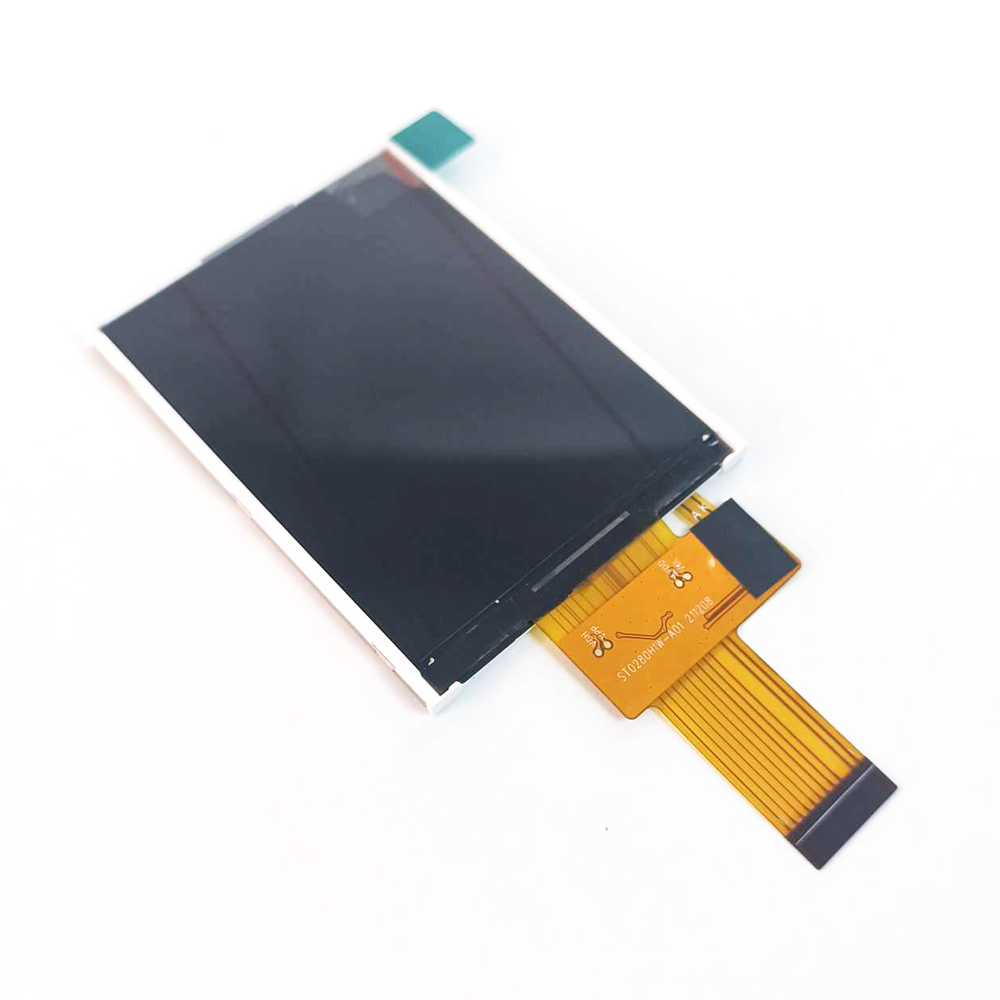

2.8" High Brightness TFT LCD Module (240 x 320) [ST0280H4W-RSMLW-F]

2.8" High Brightness TFT LCD Module (240 x 320) [ST0280H4W-RSMLW-F]

Regular price ¥2,300
Regular price Sale price ¥2,300
Sale Sold out
Tax included.

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / OtherInquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available for most of our Santek standard LCD Modules. Please contact us for inquiry.

Contact Now for Shopping

SKU:ST0280H4W-RSMLW-F




Spec Overview

Size 2.8"
Resolutions 240 x 320
Santek Model No. ST0280H4W-RSMLW-F

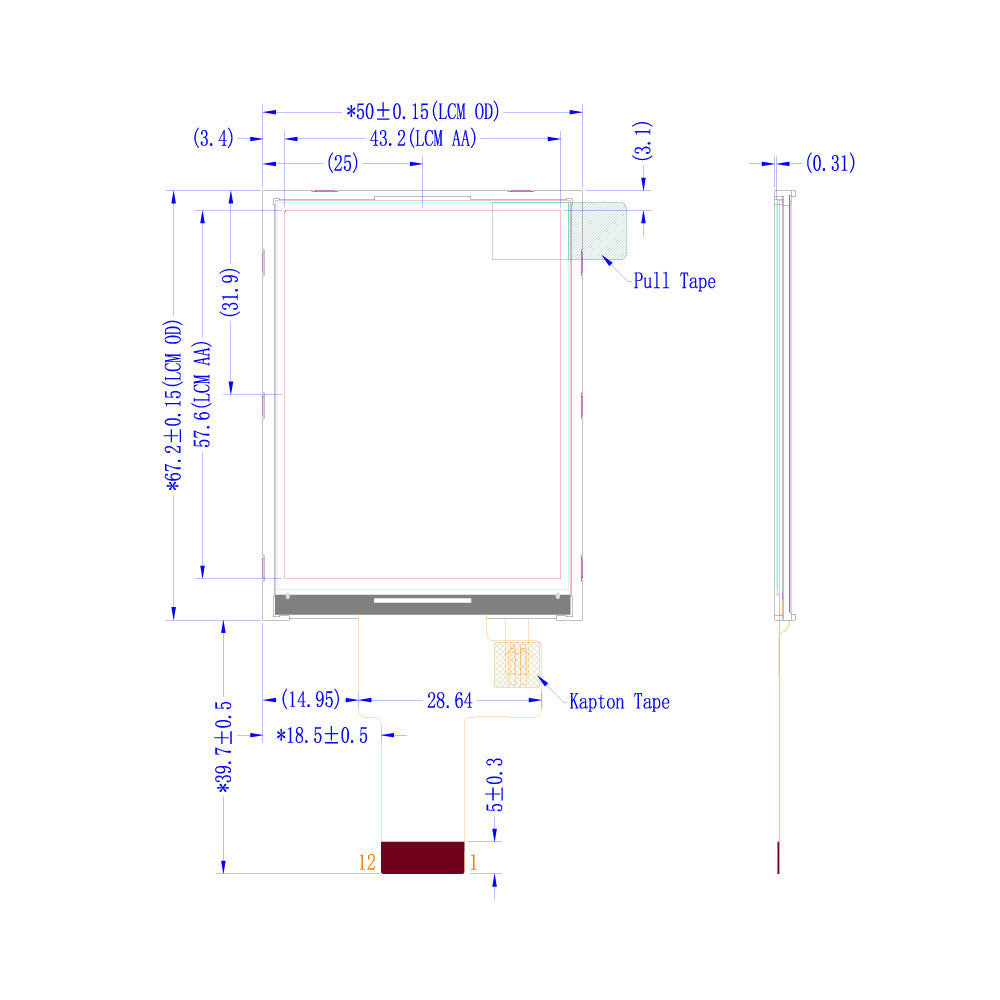

Module Size
(W x H x T mm)
50.00 x 67.20 x 2.60
Active Area
(W x H mm)
43.20 x 57.60
Interface 4 line serial interface
Brightness    550 cd/㎡
Operating Temperature -20 ~ 70 °C
Viewing Angle Wide (All Direction)

Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec / data sheets are currently in preparation.
