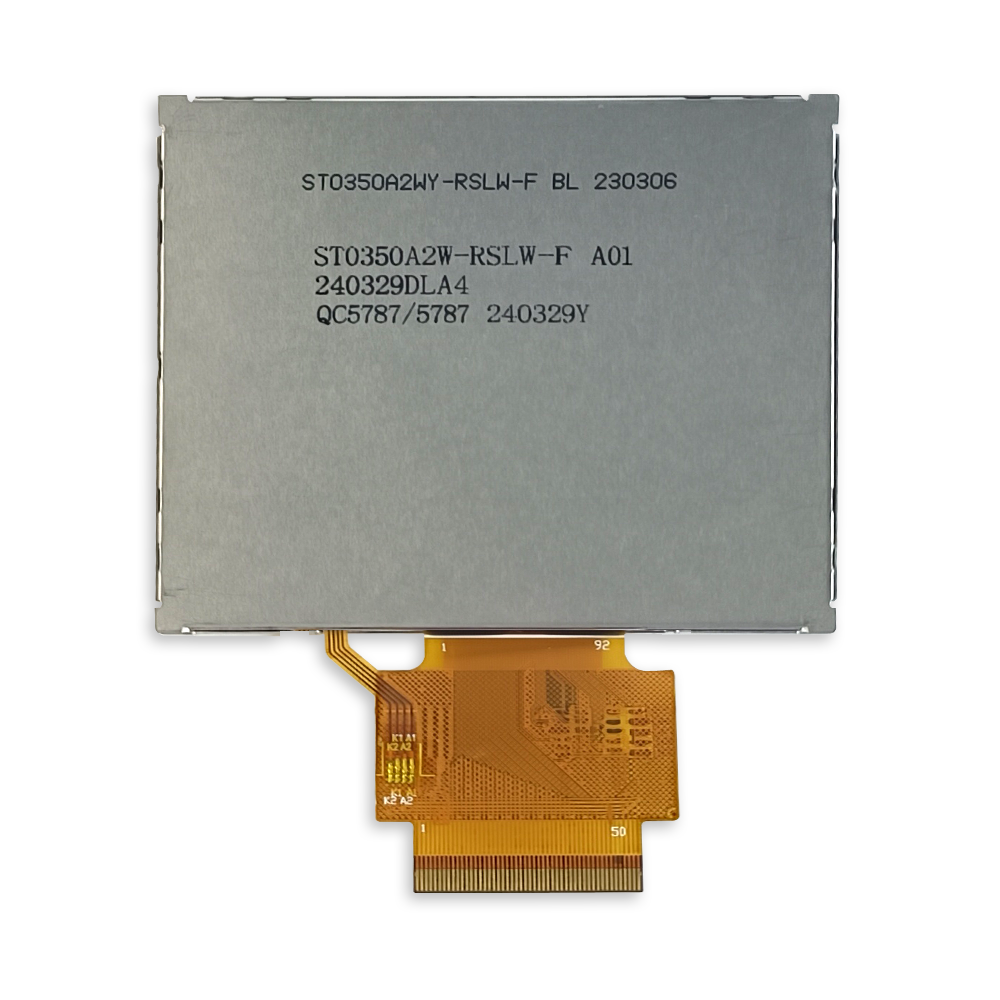

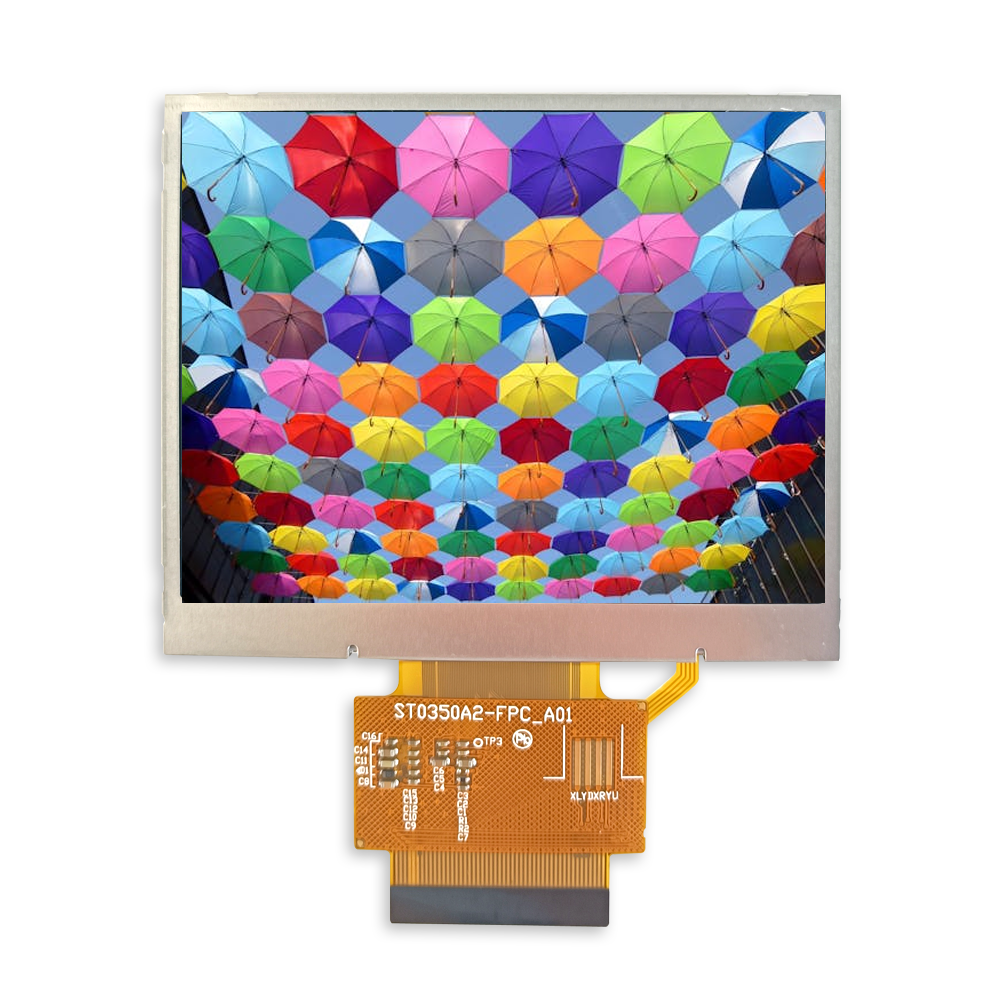

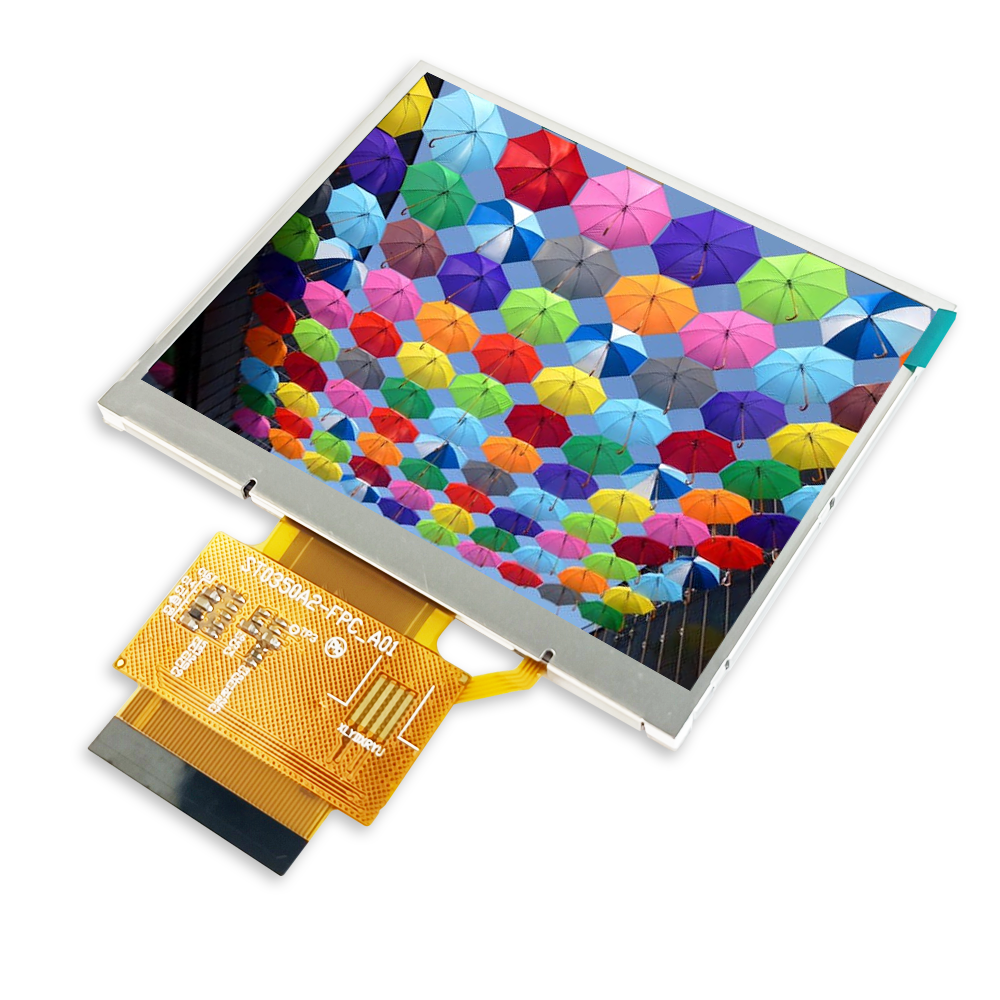

3.5" TFT LCD Module (320 x 240) [ST0350A2W-RSLW-F]

3.5" TFT LCD Module (320 x 240) [ST0350A2W-RSLW-F]

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping

SKU:




Spec Overview

Size 3.5"
Resolutions 320 x 240
QVGA
Santek Model No. ST0350A2W-RSLW-F

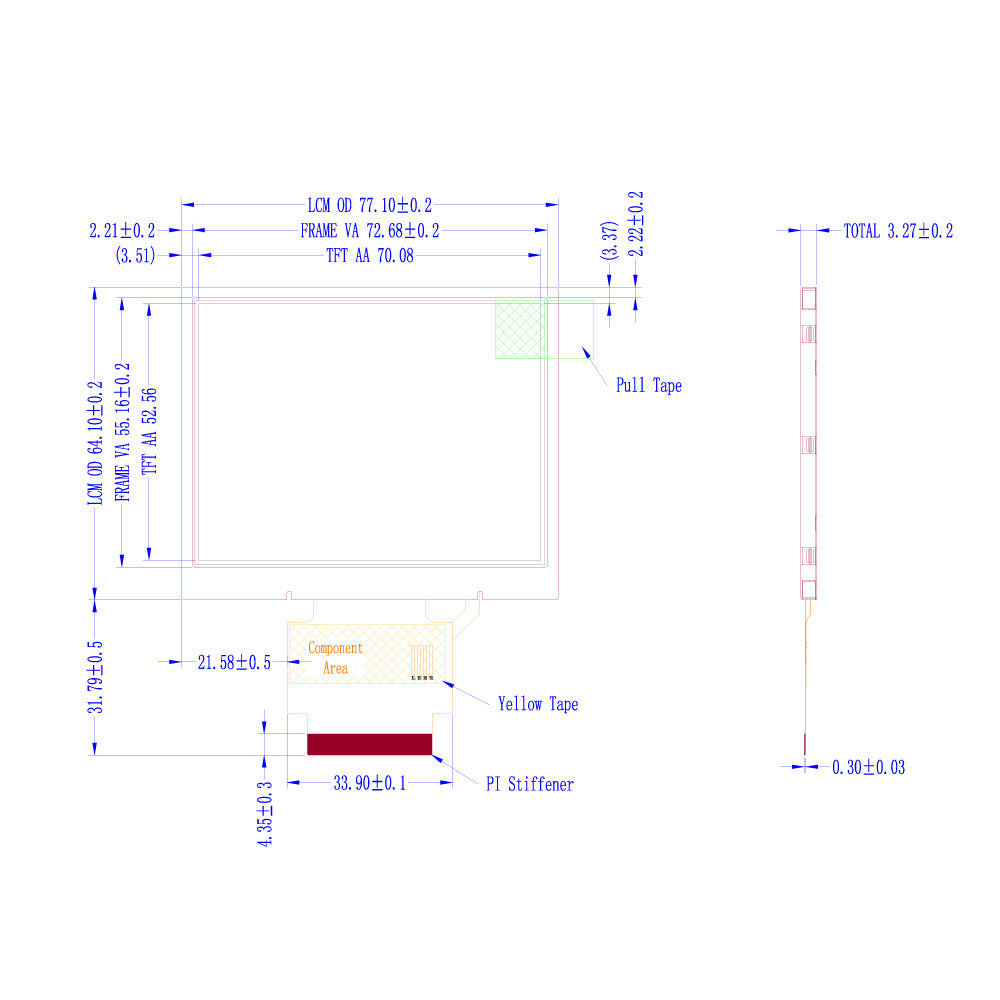

Module Size
(W x H x T mm)
77.10 x 64.10 x 4.55
Active Area
(W x H mm)
70.08 x 52.56
Interface 3-wire SPI + RGB 24 bits
Brightness    280 cd/㎡
Operating Temperature -20 ~ 70 °C
Viewing Angle 12 o'clock
(Good Viewing Angle)

Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
