3.5" Ultra High Brightness TFT LCD Module (320 x 240) [ST0350A3W-RSHLW-F] Sunlight Readable

3.5" Ultra High Brightness TFT LCD Module (320 x 240) [ST0350A3W-RSHLW-F] Sunlight Readable

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping




Spec Overview

Size 3.5"
Resolutions 320 x 240
QVGA
Santek Model No. ST0350A3W-RSHLW-F

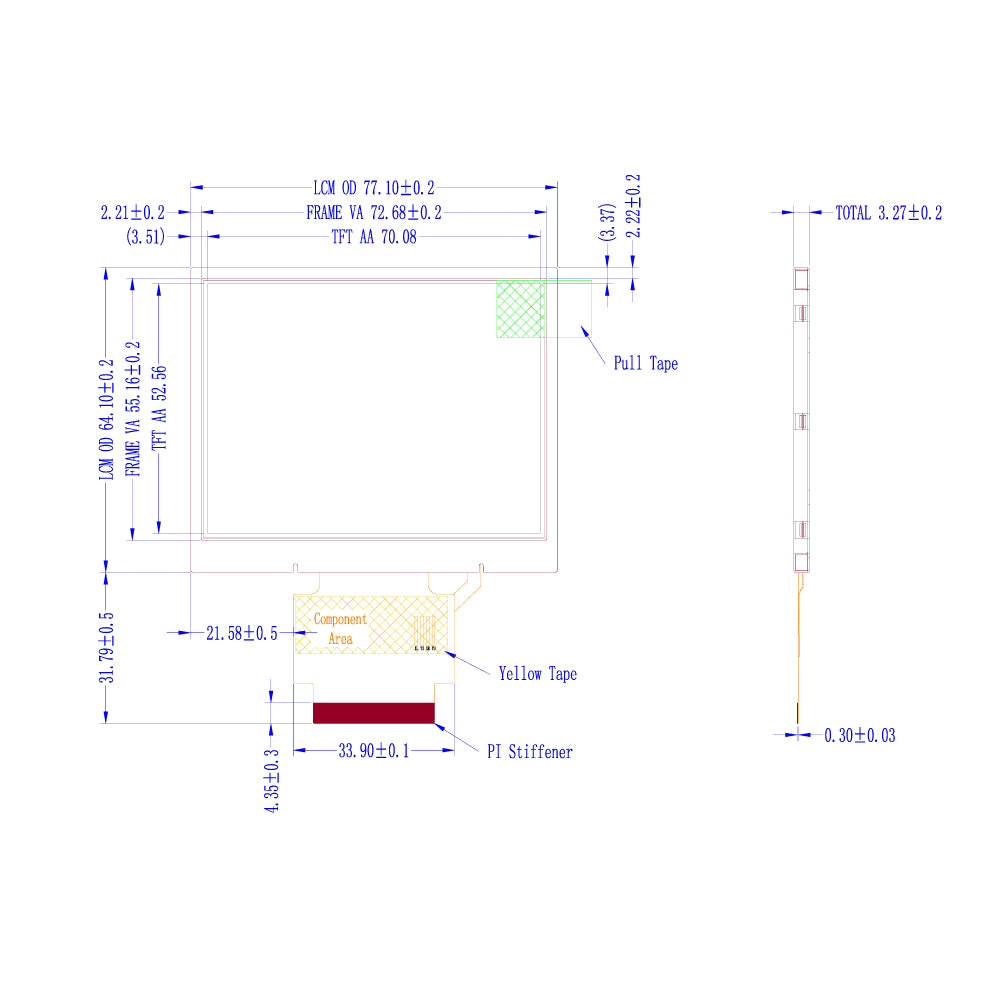

Module Size
(W x H x T mm)		 78.40 x 65.20 x 6.55
Active Area
(W x H mm)		 70.08 x 52.56
Interface 3-wire SPI + RGB 24 bits
Brightness    1,400 cd/㎡
Sunlight Readable
Operating Temperature -20 ~ 70 °C
Viewing Angle 12 o'clock
(Good Viewing Angle)


Log in or Sign in to Download Datasheet

Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
