3.0" Wide-Temperature TFT LCD Module (320 x 640) [ST0295A1W-RSLW-F]
3.0" Wide-Temperature TFT LCD Module (320 x 640) [ST0295A1W-RSLW-F]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.
SKU:
Spec Overview
| Size | 2.95" |
| Resolutions | 320 x 640 |
| Santek Model No. | ST0295A1W-RSLW-F |

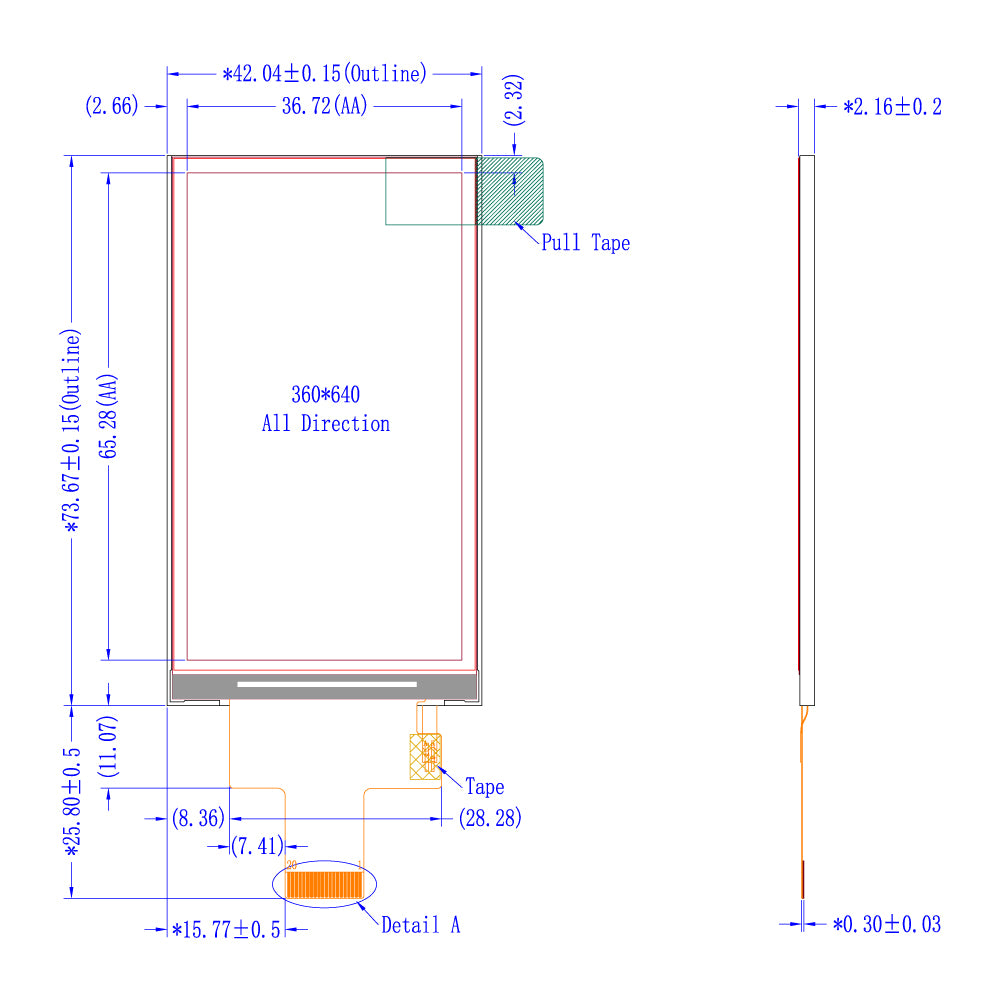

| Module Size (W x H x T mm) |
42.04 x 73.67 x 2.16 |
| Active Area (W x H mm) |
36.72 x 65.28 |
| Interface | MIPI |
| Brightness | 450 cd/㎡ |
| Operating Temperature | -30 ~ 80 °C |
| Viewing Angle | Wide (All Direction) |
Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
![3.0" Wide-Temperature TFT LCD Module (320 x 640) [ST0295A1W-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0295A1W-RSLW-F.png?v=1708069551&width=1445)
![3.0" Wide-Temperature TFT LCD Module (320 x 640) [ST0295A1W-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0295A1W-RSMLW-F.jpg?v=1712283924&width=1445)
