4.0" TFT LCD Module (480 x 800) [ST0400B1W-RSLW-F]

Name: 4.0" TFT LCD Module (480 x 800) [ST0400B1W-RSLW-F]
Brand: SantekスタンダードTFT LCD
Availability: InStock

4.0" TFT LCD Module (480 x 800) [ST0400B1W-RSLW-F]

Product variants

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping

SKU:

Spec Overview

Size	4.0"
Resolutions	480 x 800
Santek Model No.	ST0400B1W-RSLW-F

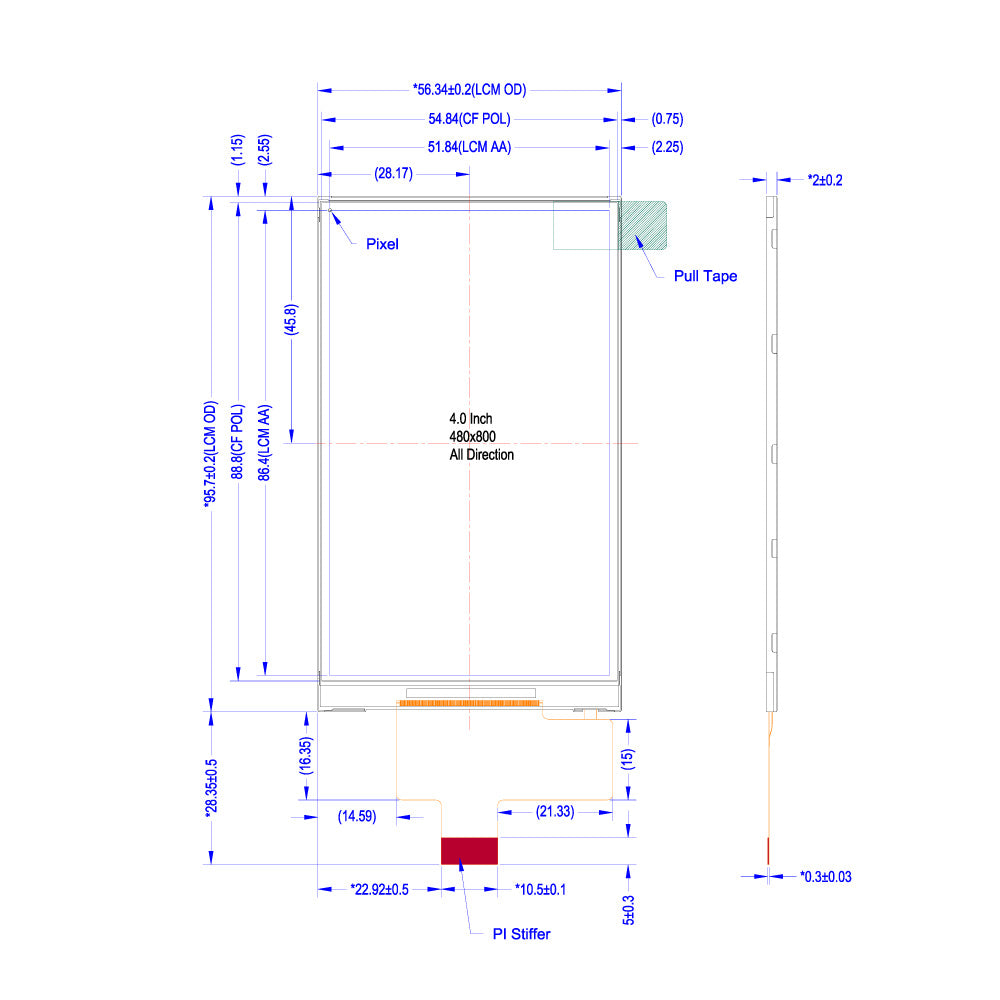

Module Size (W x H x T mm)	56.34 x 95.70 x 2.00
Active Area (W x H mm)	51.84 x 86.40
Interface	MIPI
Brightness	400 cd/m2
Operating Temperature	-20 to 70°C
Viewing Angle	Wide (All Directions)

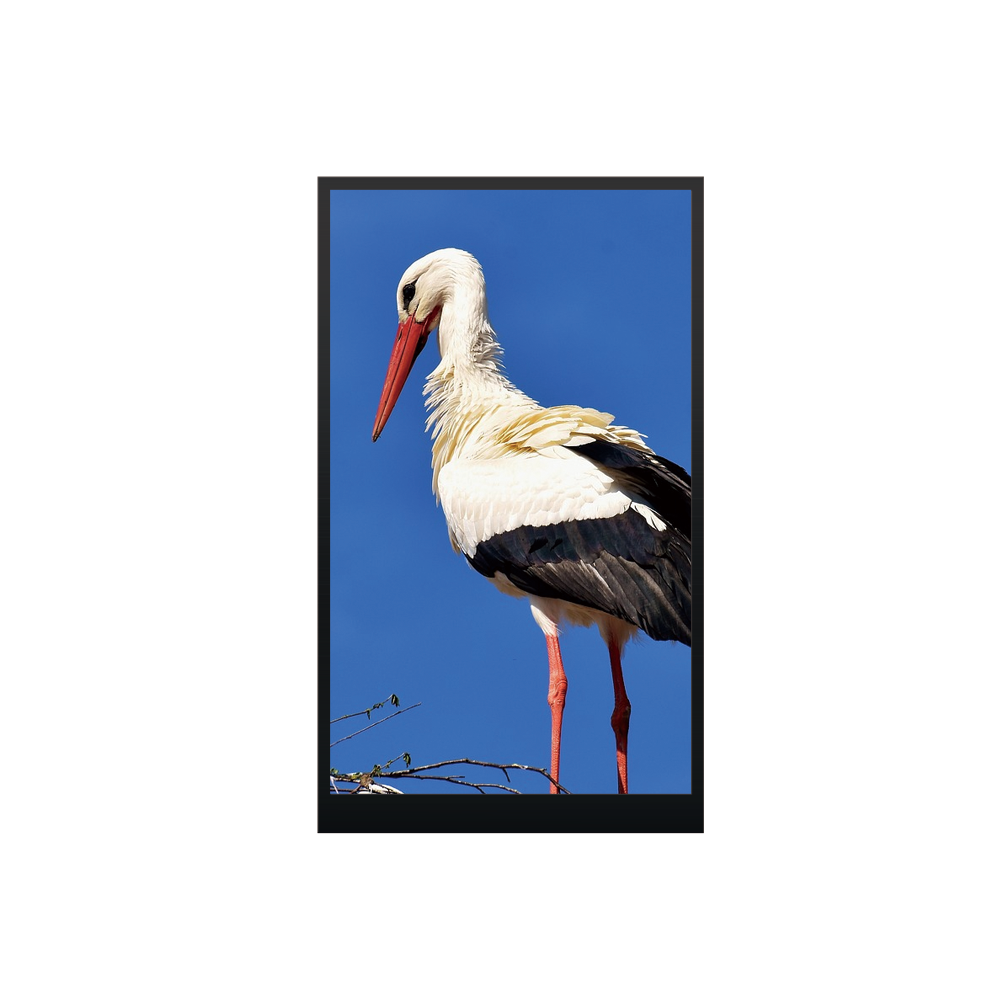

• Santek 4.0-inch High-Resolution Display

The 4.0-inch high-resolution display features a wide viewing angle and a vertical format, making it ideal for industrial devices, control panels, measuring instruments, and portable terminals that require accurate and clear information display.

• 480 × 800 Resolution

With a resolution of 480 × 800, the display renders text, icons, and graphics clearly—suitable for user interfaces and applications requiring detailed visualization.

• MIPI Interface

Equipped with a high-speed MIPI interface, enabling efficient data transfer and easy integration into high-performance systems.

• Brightness: 400 cd/㎡

With a brightness of 400 cd/㎡, the display ensures stable readability in indoor environments, providing clear visibility for industrial monitors and control devices.

• Wide Viewing Angle (All Directions)

The wide viewing angle ensures excellent readability from all directions, suitable for multi-user operation and applications requiring visibility from various angles.
