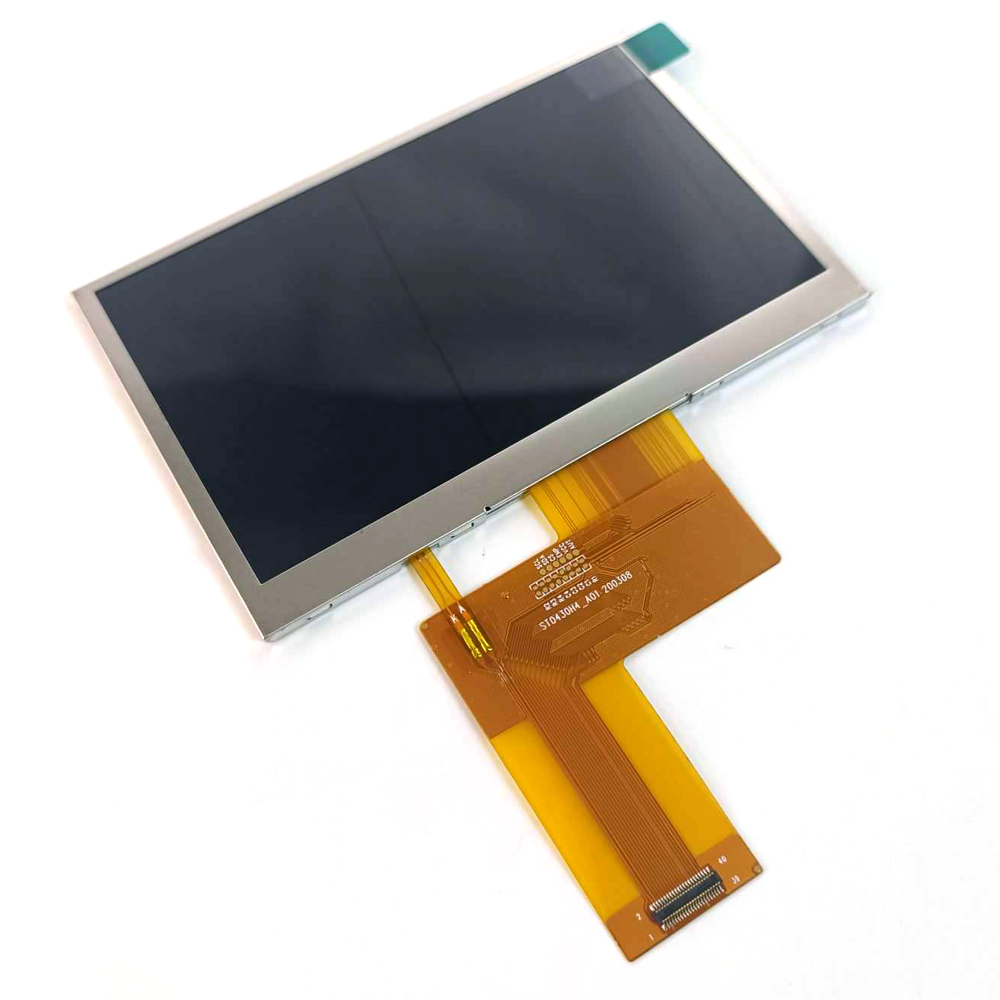

4.3" TFT LCD Module (480 x 272) Wide Viewing Type [ST0430H4W-RSLW-C]

4.3" TFT LCD Module (480 x 272) Wide Viewing Type [ST0430H4W-RSLW-C]

¥2,350
¥2,350
Sale Sold out
Tax included. Shipping calculated at checkout.

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / OtherInquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available for　most of our Santek standard LCD Modules. Please contact us for inquiry.

Contact Now for Shopping

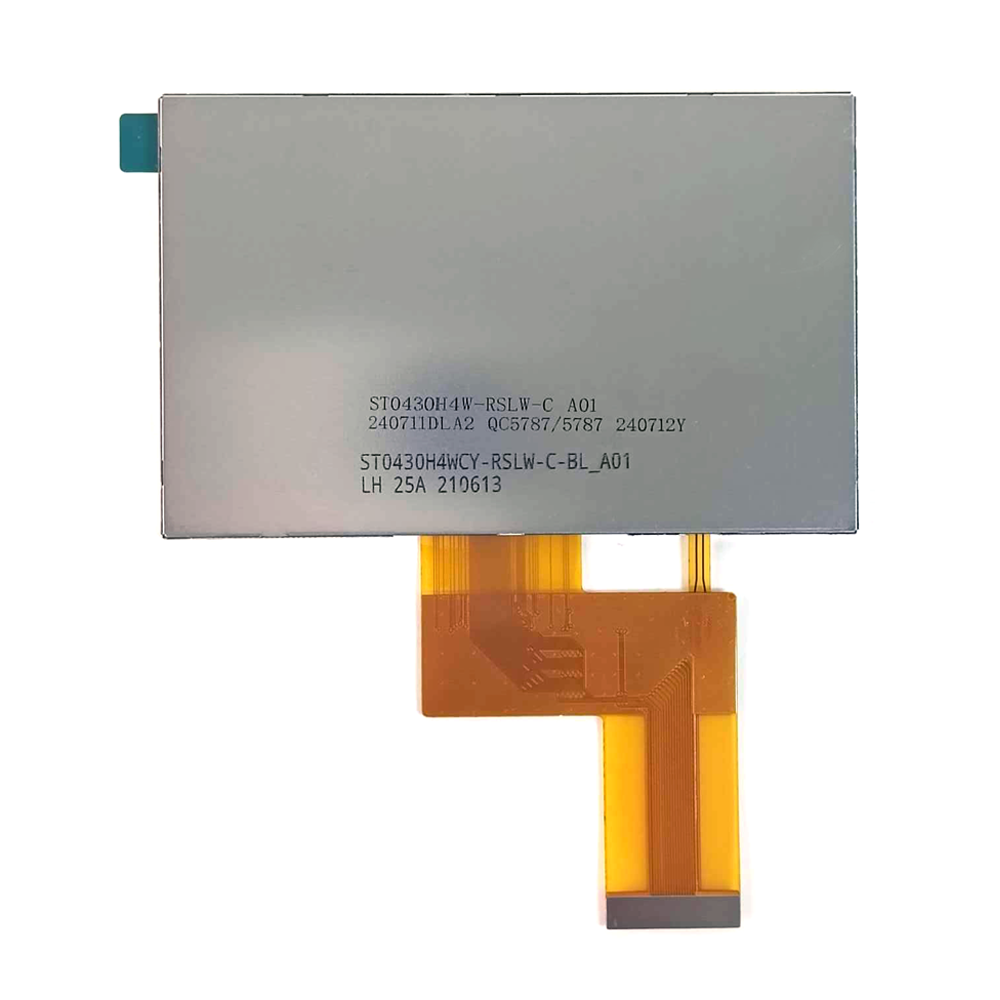

ST0430H4W-RSLW-C




Spec Overview

Size 4.3"
Resolutions 480 x 272
Santek Model No. ST0430H4W-RSLW-C

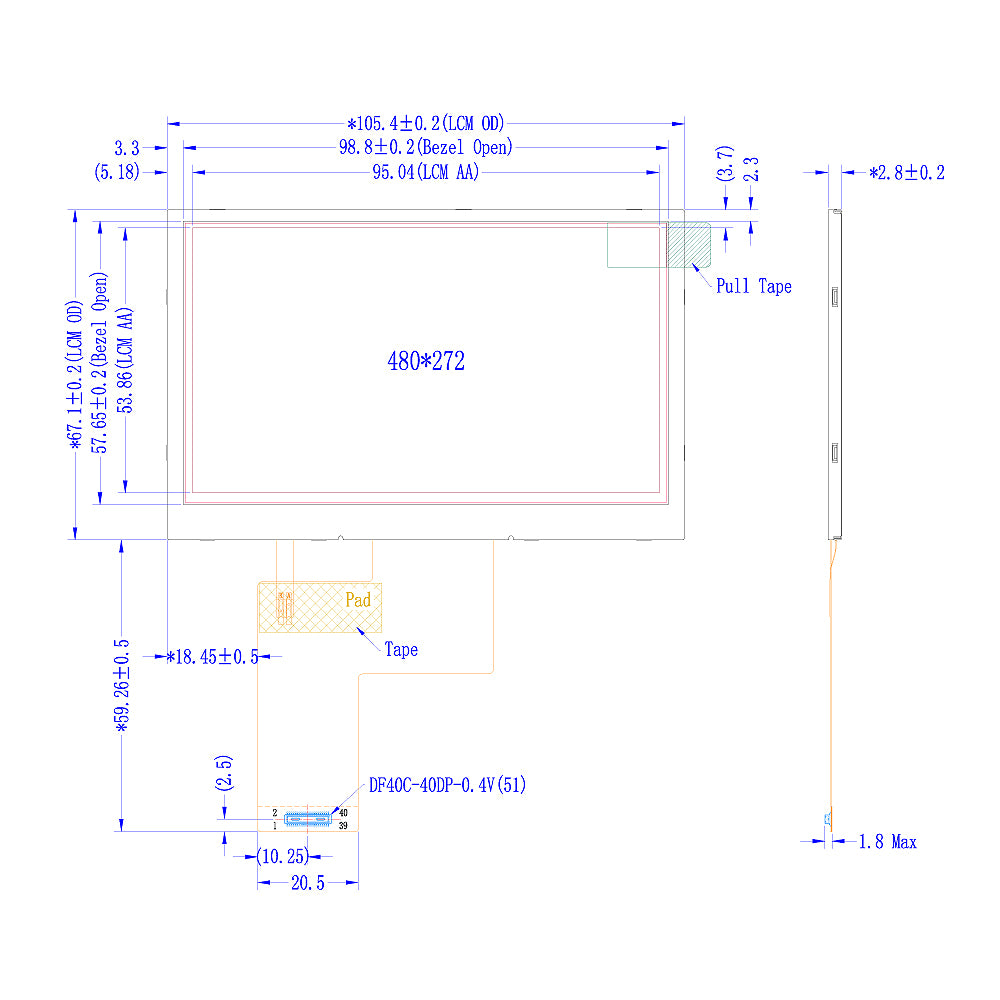

Module Size
(W x H x T mm)		 105.40 x 67.10 x 2.80
Active Area
(W x H mm)		 95.04 x 53.86
Interface RGB 24 bits
Brightness 450 cd/㎡
Operating Temperature -20 to 70°C
Viewing Angle Wide (All Directions)

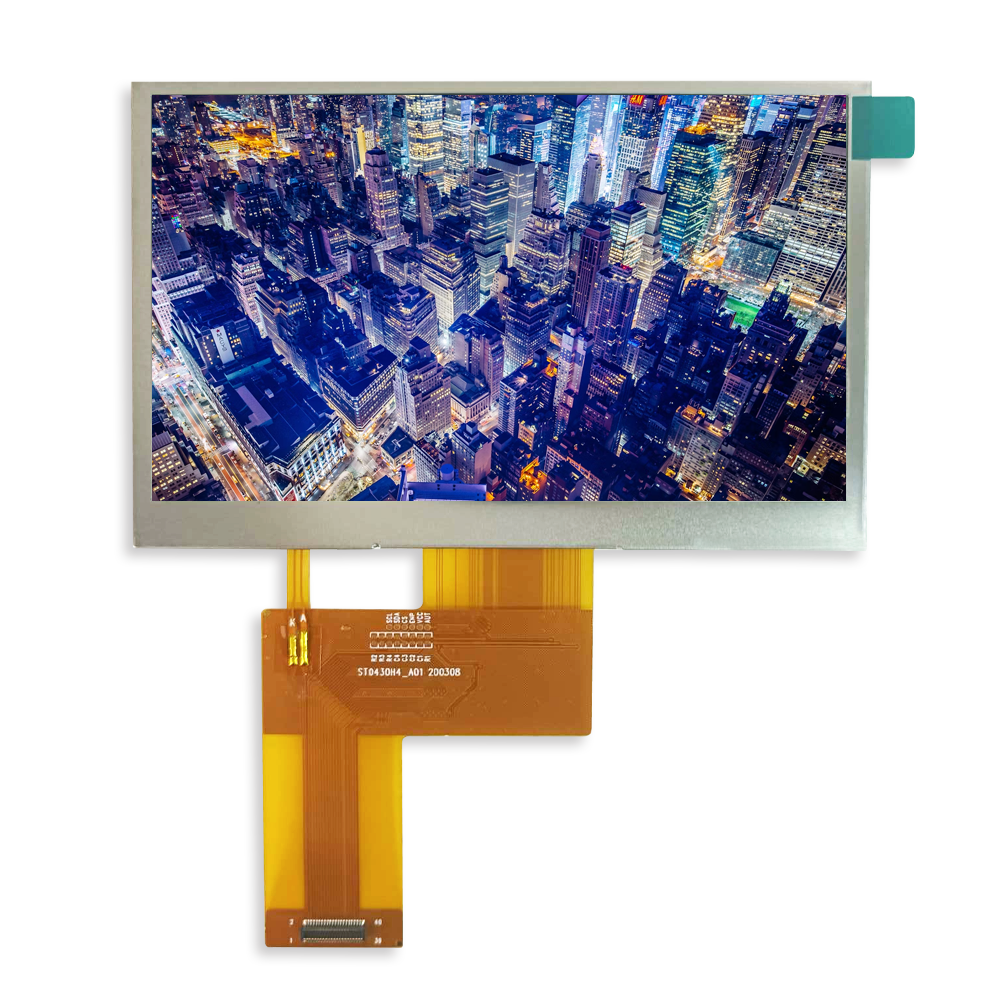

• Santek 4.3-inch Display

The 4.3-inch display features a wide-format design and wide viewing angle technology, making it suitable for industrial equipment, control panels, measuring instruments, and medical devices requiring stable visibility from multiple directions.

• 480 × 272 (WQVGA) Wide Resolution

With a 480 × 272 (WQVGA) resolution, the display provides a wide horizontal viewing area, enabling clear and efficient layout of user interfaces and status information.

• RGB 24-bit Interface

Supporting an RGB 24-bit interface, the module delivers smooth and full-color image rendering, ideal for high-quality user interface designs.

• Brightness: 450 cd/㎡

A brightness level of 450 cd/㎡ ensures clear visibility even in bright indoor environments, making the display suitable for industrial and control panel applications.

• Wide Viewing Angle (All Directions)

The wide viewing angle design ensures consistent image quality from all directions, offering greater flexibility in installation and user interaction.

• Wide Operating Temperature (-20 to 70°C)

Stable operation is guaranteed across a wide temperature range from -20°C to 70°C, supporting industrial and equipment-integrated applications.

Log in or Sign in to Download Datasheet

Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec / data sheets are currently in preparation.
