5.6" TFT LCD Module (640 x 480) [ST0560I4W-RSLW-F]

5.6" TFT LCD Module (640 x 480) [ST0560I4W-RSLW-F]

¥11,990
¥11,990
Sale Sold out
Tax included.

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / OtherInquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available for　most of our Santek standard LCD Modules. Please contact us for inquiry.

Contact Now for Shopping




Spec Overview

Size 5.6"
Resolutions 640 x 480
VGA
Santek Model No. ST0560I4W-RSLW-F

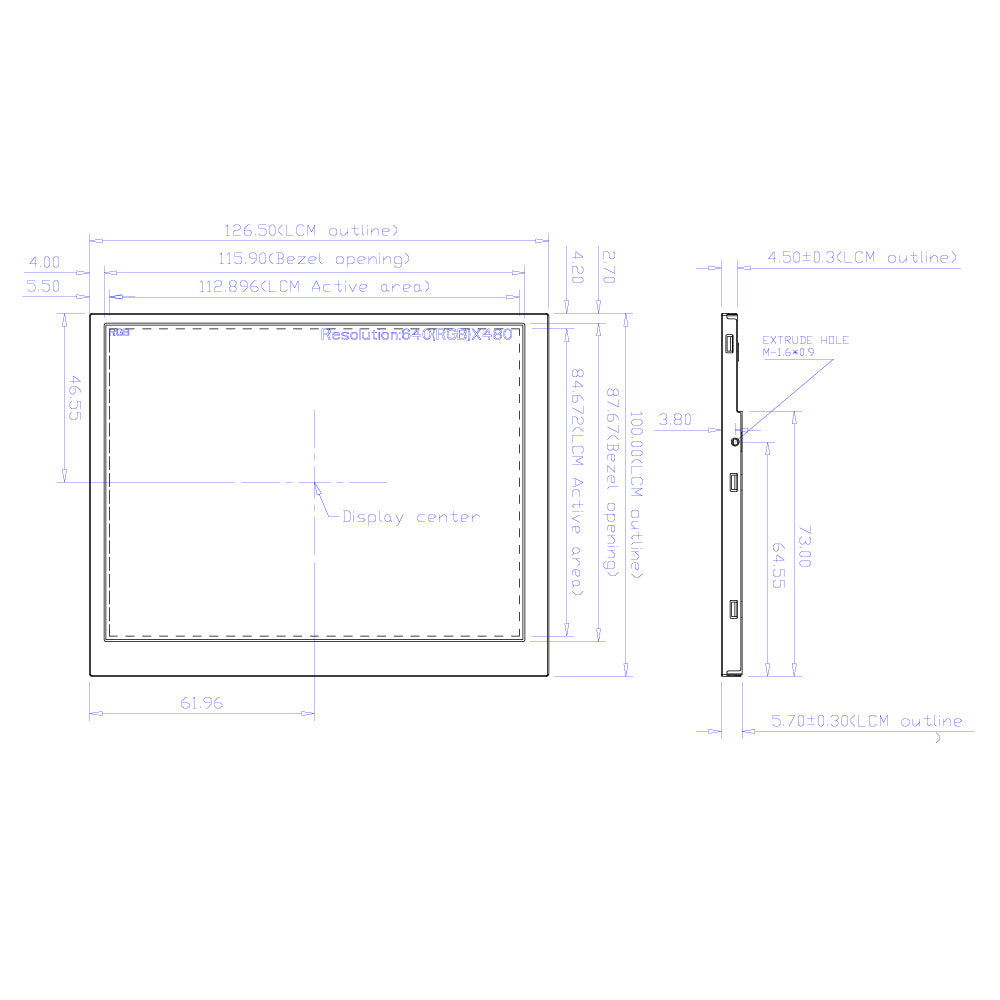

Module Size
(W x H x T mm)		 126.50 x 100.00 x 5.70
Active Area
(W x H mm)		 112.90 x 84.67
Interface RGB 18 bits
Brightness    350 cd/㎡
Operating Temperature -20 ~ 70 °C
Viewing Angle 6 o'clock
(Good Viewing Angle)

Log in or Sign in to Download Datasheet

Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec / data sheets are currently in preparation.
