19" Ultra High Brightness TFT LCD Module (1280 x 1024) with Capacitive Touch [ST1900A4WCYOL-RSHLWRSHLW-C]
19" Ultra High Brightness TFT LCD Module (1280 x 1024) with Capacitive Touch [ST1900A4WCYOL-RSHLWRSHLW-C]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.
SKU:
Spec Overview
| Size | 19" |
| Resolutions | 1280 x 1024 |
| Touch Panel | Capacitive Touch (CTP) |
| Bonding | Optical Bonding |
| Santek Model No. | ST1900A4WCYOL-RSHLW-C |

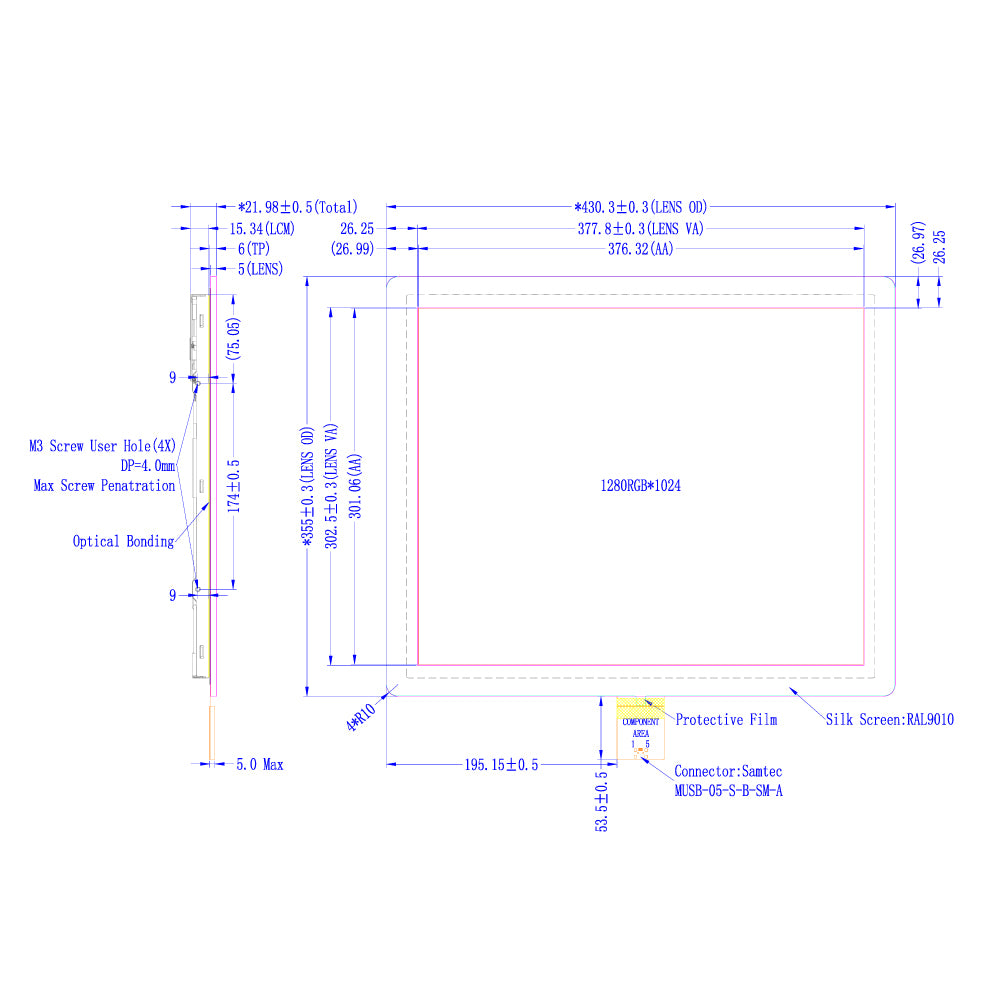

| Module Size (W x H x T mm) |
430.3 x 355 x 21.98 |
| Active Area (W x H mm) |
376.32 x 301.06 |
| Interface | 2ch LVDS |
| Brightness | 1,500 cd/㎡ (Sunlight Readable) |
| Operating Temperature | -20 ~ 70 °C |
| Viewing Angle | Wide (All Direction) |
Once you log in, you will return to toppage. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
