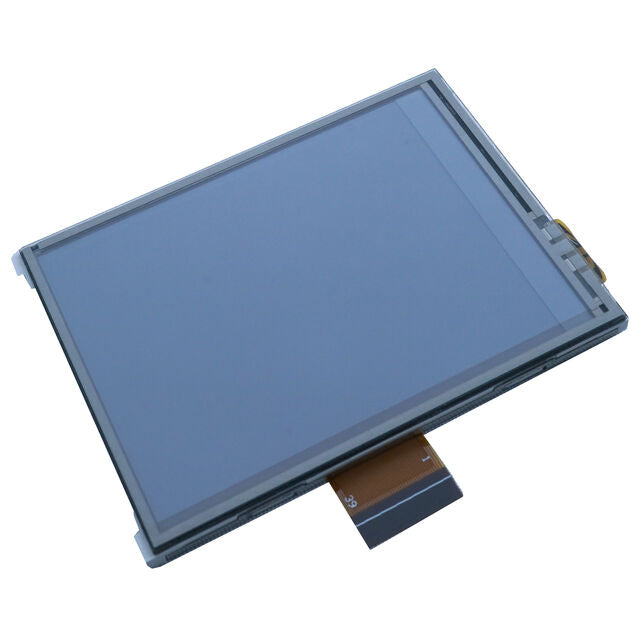

2.4" TFT LCD Module (240 x 320) with Resistive Touch [ST0240A1WY-RSLW-F]
2.4" TFT LCD Module (240 x 320) with Resistive Touch [ST0240A1WY-RSLW-F]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.
SKU:
Spec Overview
| Size | 2.4" |
| Resolutions | 240 x 320 |
| Touch Panel | Resistive Touch (RTP) |
| Santek Model No. | ST0240A1WY-RSLW-F |
| Outline Dimension (W x H x T mm) |
42.70 x 61.15 x 3.65 |
| LCD Active Area (W x H mm) |
36.72 x 48.96 |
| Interface | 8/16 bit parallel |
| Brightness | 350 cd/m2 |
| Operating Temperature | -20 ~ 70 °C |
| Viewing Angle | 6 o'clock (Good Viewing Direction) |
Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
