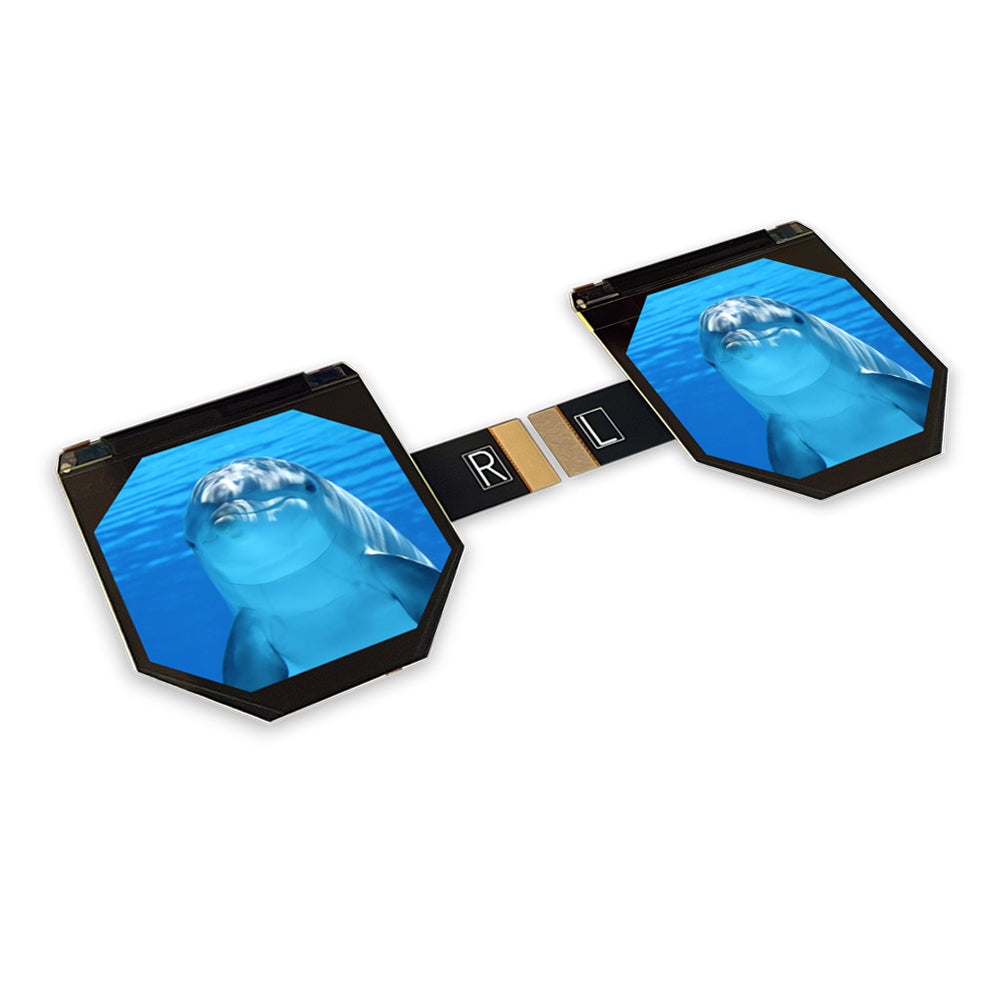

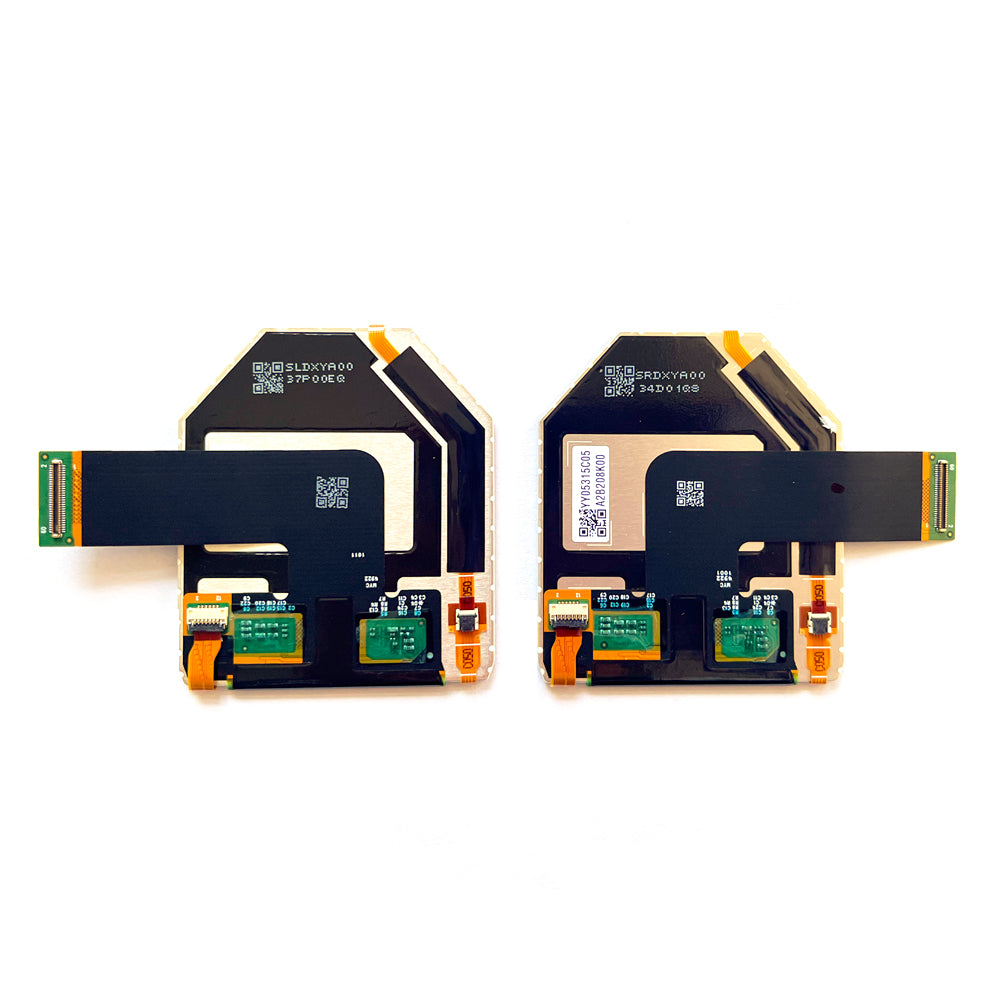

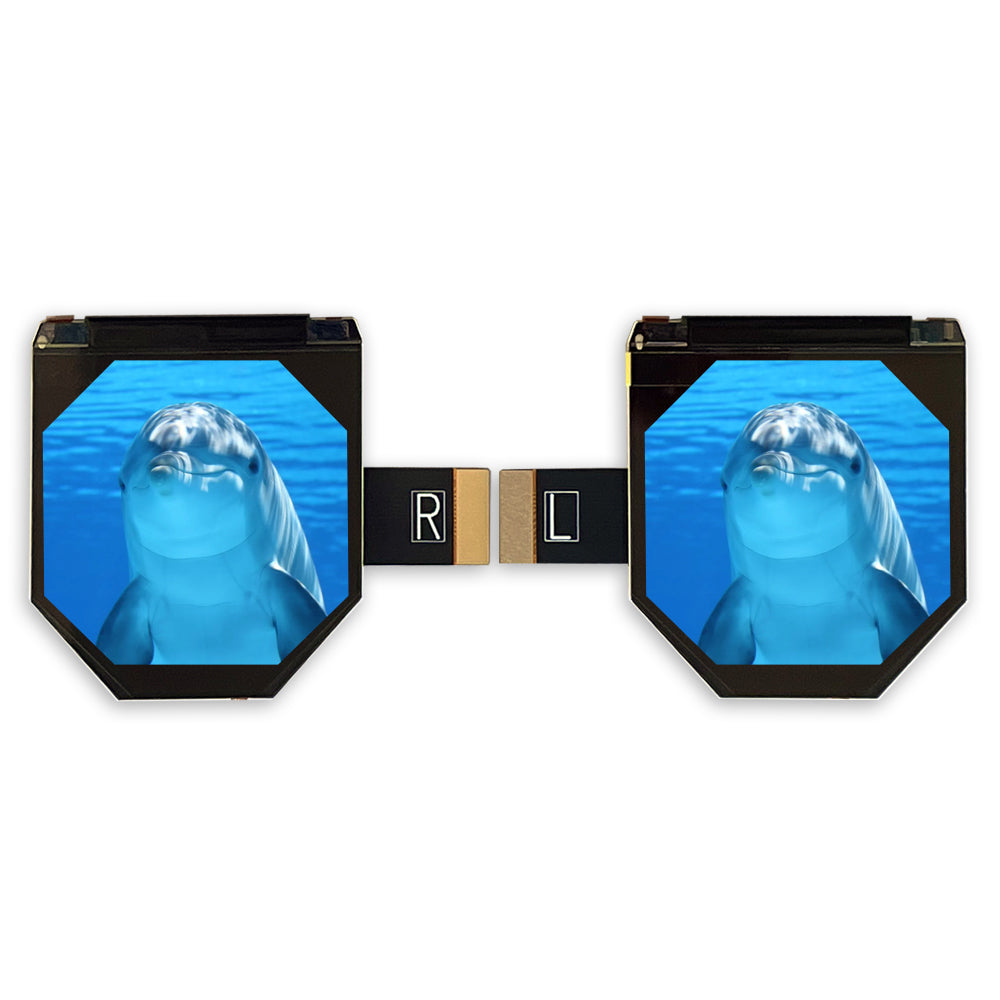

2.56" Octagon TFT LCD Module (2160 x 2160) for VR/AR Goggles [ST0256A2W-RSMLW-C]

2.56" Octagon TFT LCD Module (2160 x 2160) for VR/AR Goggles [ST0256A2W-RSMLW-C]

¥42,000
¥42,000
Sale Sold out
Tax included.

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / OtherInquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available for　most of our Santek standard LCD Modules. Please contact us for inquiry.

Contact Now for Shopping




Spec Overview

 Size 2.56"
Resolutions 2160 x 2160
Panel Type Octagon
(Sold by the pair)
Santek Model No. ST0256A2W-RSMLW-C

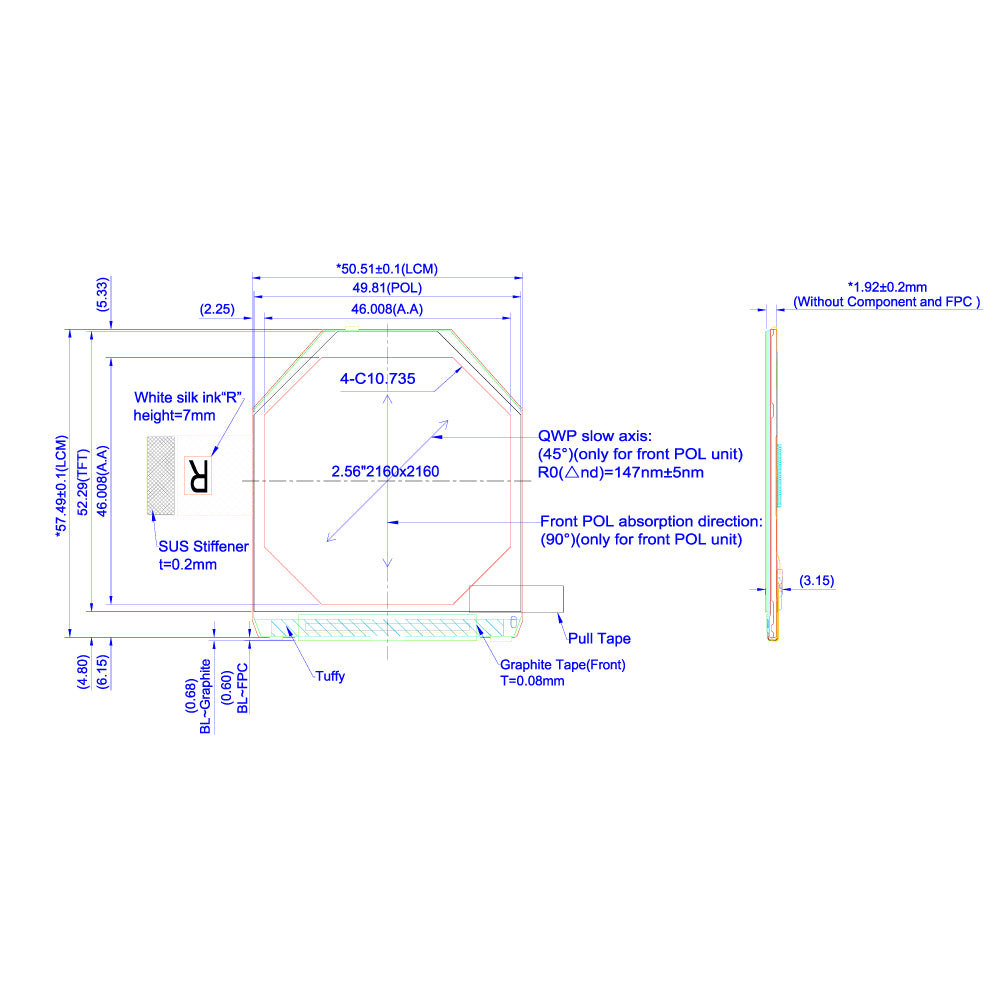

Module Size
(W x H x T mm)		 50.51 x 57.49 x 1.92
Active Area
(W x H mm)		 46.008 x 46.008
Interface MIPI
Brightness              520 cd/㎡
Operating Temperature -20 ~ 60 °C

This LCD module is ideal for VR goggles because of its high resolution and high brightness.

Log in or Sign in to Download Datasheet

Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec / data sheets are currently in preparation.
