2.8" TFT LCD Module (240 x 320) [ST0280A6W-RSLW-F]
2.8" TFT LCD Module (240 x 320) [ST0280A6W-RSLW-F]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / OtherInquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available for most of our Santek standard LCD Modules. Please contact us for inquiry.
SKU:
Couldn't load pickup availability
Spec Overview
| Size | 2.8" |
| Resolutions | 240 x 320 |
| Santek Model No. | ST0280A6W-RSLW-F |

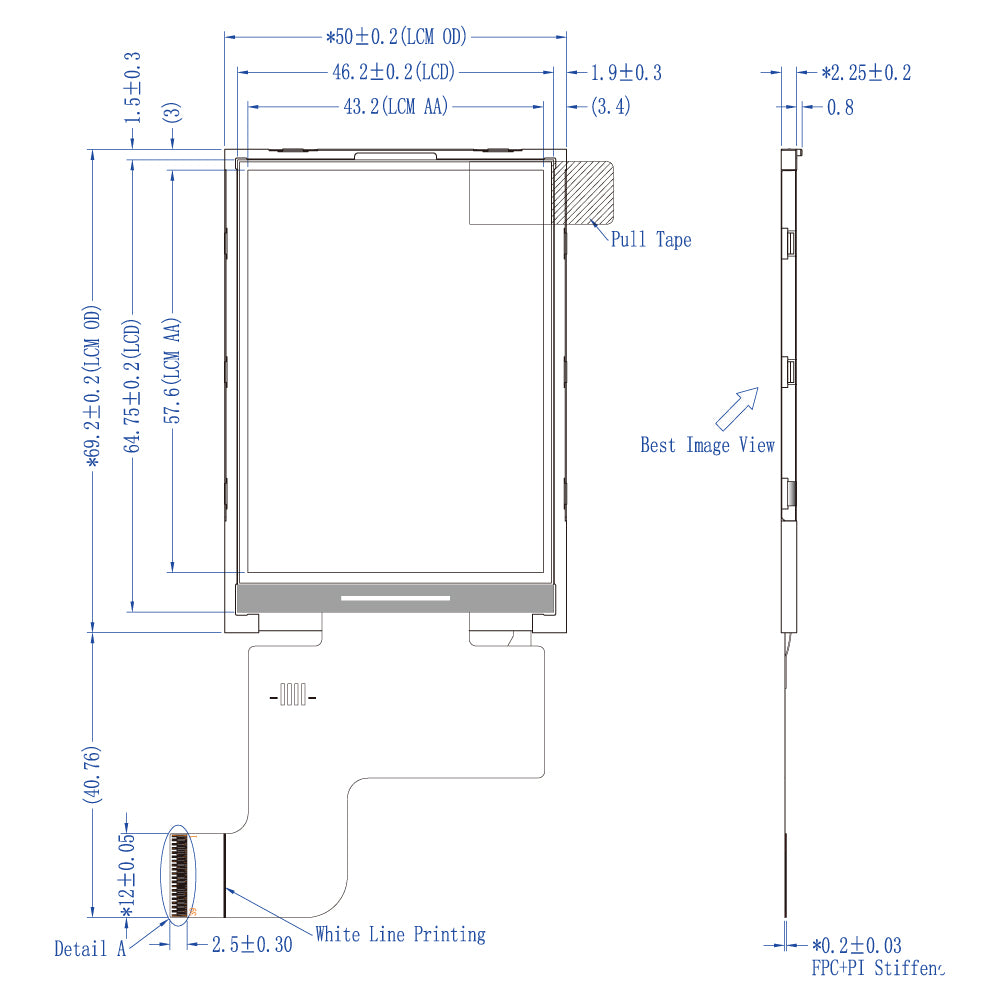

| Module Size (W x H x T mm) |
50.00 x 69.20 x 2.40 |
| Active Area (W x H mm) |
43.20 x 57.60 |
| Interface | CPU 8/16 bits |
| Brightness | 250 cd/㎡ |
| Operating Temperature | -20 ~ 70 °C |
| Viewing Angle | 6 o'clock (Good Viewing Angle) |
Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec / data sheets are currently in preparation.
