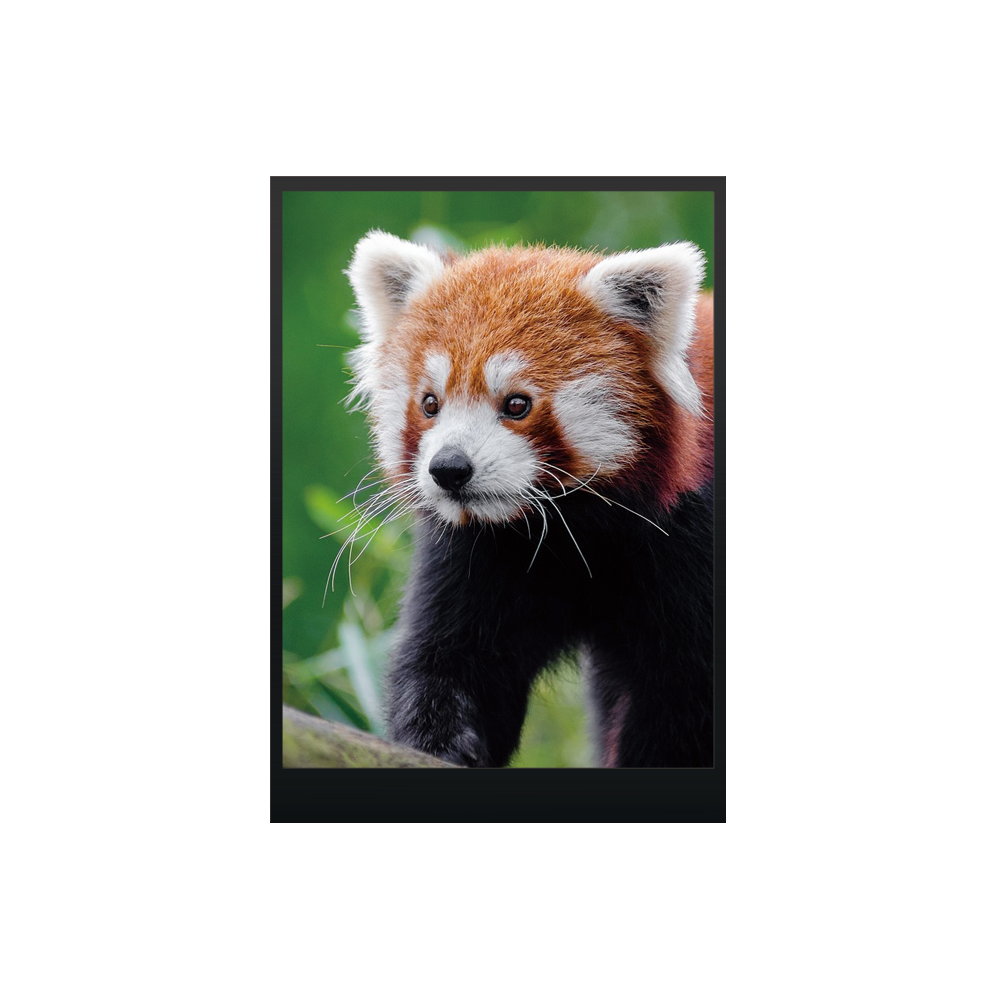

2.8" TFT LCD Module (480 x 640) High Resolution Type [ST0280B3W-RSLW-F]
2.8" TFT LCD Module (480 x 640) High Resolution Type [ST0280B3W-RSLW-F]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.
SKU:

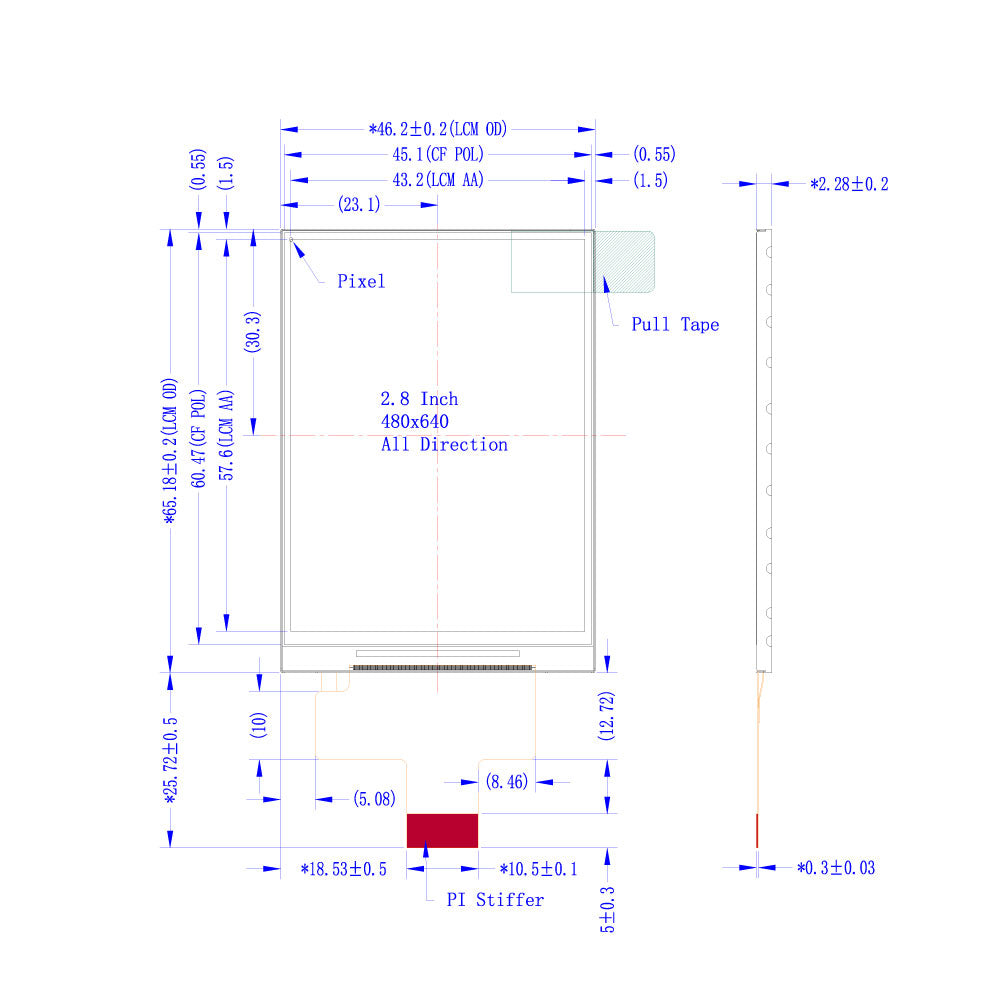

Spec Overview
| Size | 2.8" |
| Resolutions | 480 x 640 VGA |
| Santek Model No. | ST0280B3W-RSLW-F |
| Module Size (W x H x T mm) |
46.2 x 65.18 x 2.28 |
| Active Area (W x H mm) |
43.20 × 57.60 |
| Interface | MIPI |
| Brightness | 400 cd/m2 |
| Operating Temperature | -20 ~ 70 °C |
| Viewing Angle | Wide (All Direction) |
Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
![2.8" TFT LCD Module (480 x 640) High Resolution Type [ST0280B3W-RSLW-F]](http://santekdisplay.com/cdn/shop/files/ST0280BXXX-RSLW-C.png?v=1708069504&width=1445)
![2.8" TFT LCD Module (480 x 640) High Resolution Type [ST0280B3W-RSLW-F]](http://santekdisplay.com/cdn/shop/files/Spec_ST0280B3W-RSLW-F_RS01.jpg?v=1721629511&width=1445)
