3" Transflective TFT LCD Module (240 x 400) [ST0300T2W-RSLW-C]
3" Transflective TFT LCD Module (240 x 400) [ST0300T2W-RSLW-C]
Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.
Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.
SKU:
Spec Overview
| Size | 3" |
| Display Type | Transflective |
| Resolutions | 240 x 400 WQVGA (Wide-QVGA) |
| Santek Model No. | ST0300T2W-RSLW-C |

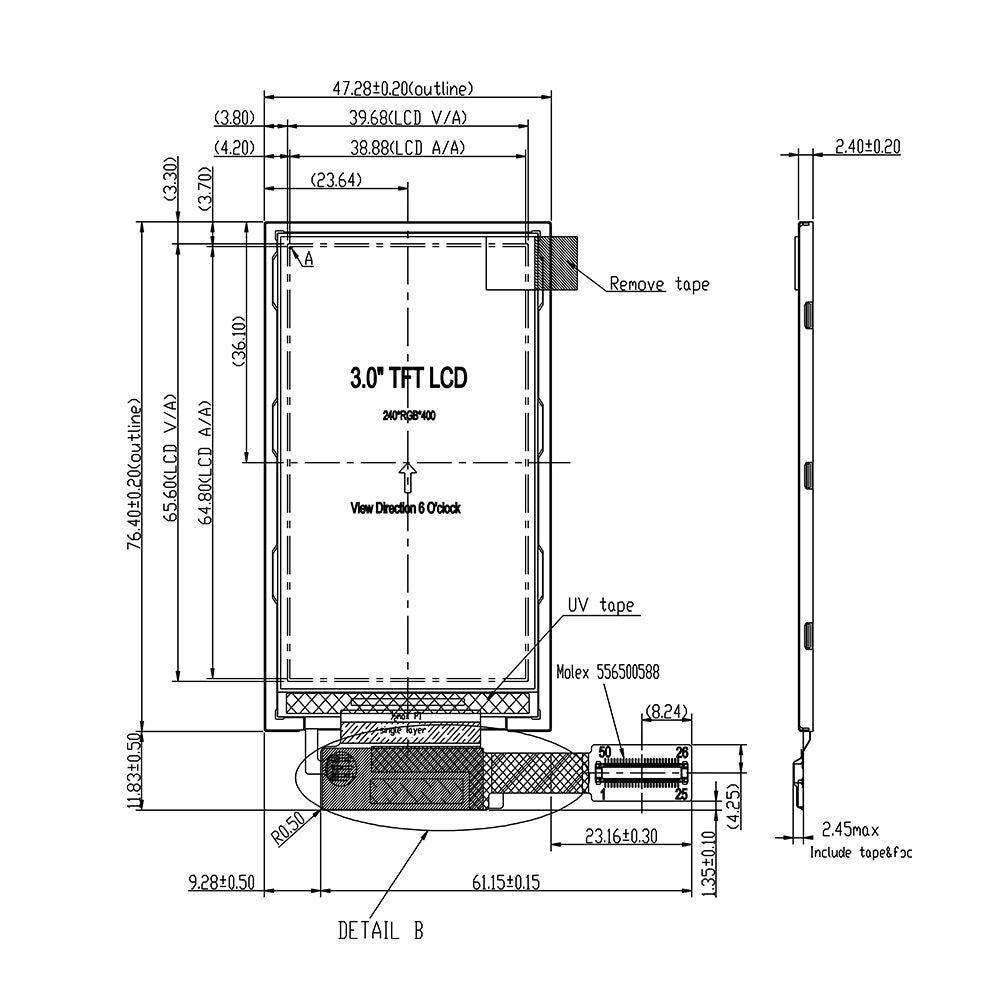

| Module Size (W x H x T mm) |
47.28 x 76.4 x 2.4 |
| Active Area (W x H mm) |
38.88 x 64.80 |
| Interface | MCU / SPI |
| Brightness | 130 cd/m2 |
| Operating Temperature | -20 ~ 70 °C |
| Viewing Angle | 6 o'clock |
Once you log in, you will return to top page. Select any products to download Spec Sheet. Some spec sheet is currently unavailable.
