3.5" Ultra High Brightness TFT LCD Module (320 x 240) 1,400cd/m2 [ST0350T8WA1-RSHLW-F] Sunlight Readable

Name: 3.5" Ultra High Brightness TFT LCD Module (320 x 240) 1,400cd/m2 [ST0350T8WA1-RSHLW-F] Sunlight Readable
Brand: LCDモジュール
Availability: InStock

3.5" Ultra High Brightness TFT LCD Module (320 x 240) 1,400cd/m2 [ST0350T8WA1-RSHLW-F] Sunlight Readable

Product variants

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping

SKU:

Spec Overview

Size	3.5"
Resolutions	320 x 240
Santek Model No.	ST0350T8WA1-RSHLW-F

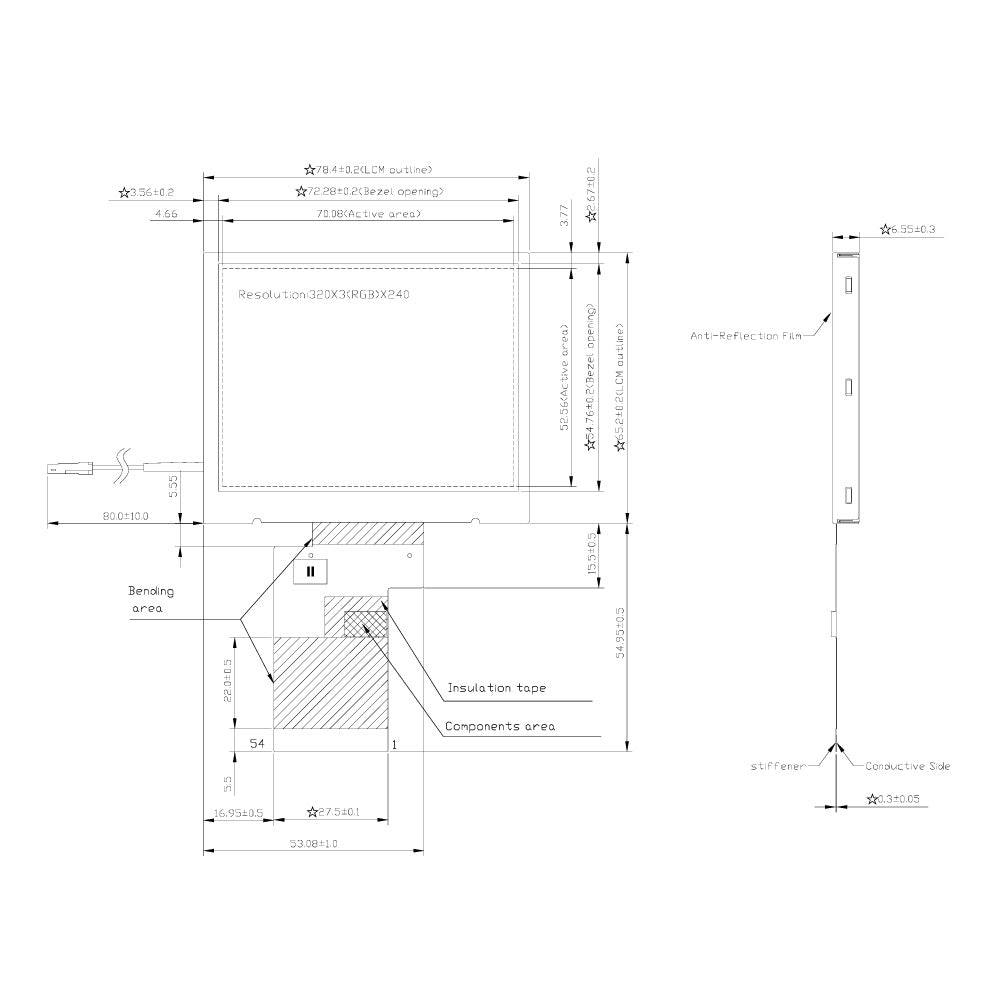

Module Size (W x H x T mm)	76.90 x 63.90 x 3.15
Active Area (W x H mm)	70.08 x 52.56
Interface	RGB/SPI
Brightness	1,400 cd/㎡ Sunlight Readable
Operating Temperature	-20 to 70°C
Viewing Angle	12 o'clock (Good Viewing Angle)

• Santek 3.5-inch High Brightness Display

The 3.5-inch high-brightness display is designed for excellent outdoor visibility, making it ideal for outdoor terminals, industrial devices, measuring instruments, and applications requiring strong readability and reliability.

• 320 × 240 (QVGA) Resolution

With a 320 × 240 (QVGA) resolution, the display delivers sharp and clear rendering of text, icons, and graphics—suitable for both user interfaces and general graphic display.

• SPI / RGB Interface

Supports control via SPI and full-color RGB rendering, offering flexibility for diverse system designs and easy integration into various devices.

• Ultra-High Brightness: 1,400 cd/㎡ (Sunlight Readable)

Equipped with an exceptionally bright 1,400 cd/㎡ backlight, the display remains readable even under direct sunlight, making it ideal for outdoor devices and portable equipment.

• Viewing Angle: 12 o’clock (Good Viewing Direction)

Optimized for upward viewing, the display delivers its best visibility from the 12 o’clock direction—ideal for devices with fixed mounting orientations.
