4.0" Square TFT LCD Module (480 x 480) [ST0395H1W-RSLW-F]

Name: 4.0" Square TFT LCD Module (480 x 480) [ST0395H1W-RSLW-F]
Brand: SantekスタンダードTFT LCD
Availability: InStock

4.0" Square TFT LCD Module (480 x 480) [ST0395H1W-RSLW-F]

Product variants

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping

SKU:

Spec Overview

Size	4.0"
Resolutions	480 x 480
Panel Type	Square
Santek Model No.	ST0395H1W-RSLW-F

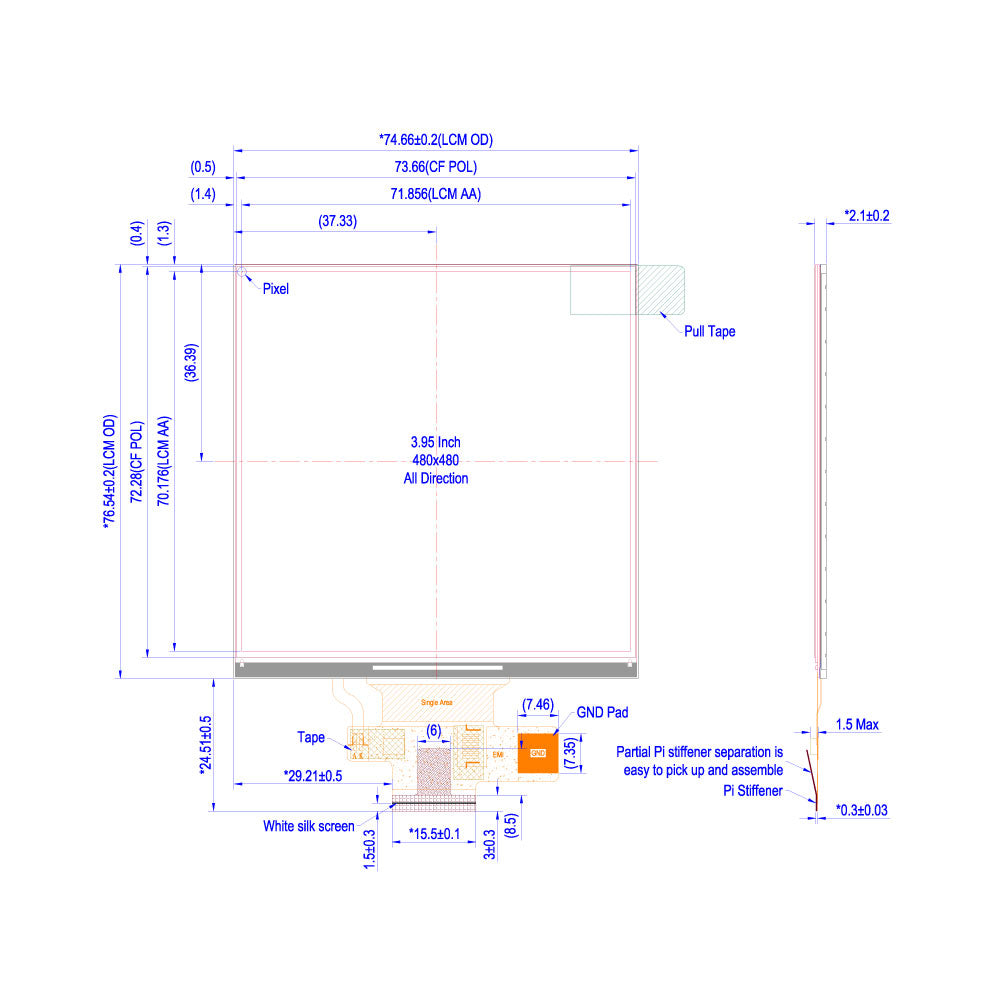

Module Size (W x H x T mm)	74.66 x 76.54 x 2.10
Active Area (W x H mm)	71.85 x 70.17
Interface	MIPI
Brightness	350 cd/㎡
Operating Temperature	-20 to 70°C
Viewing Angle	Wide (All Directions)

• Santek 4.0-inch Square Display

The 4.0-inch square display features a wide viewing angle, making it ideal for industrial devices, control panels, measuring instruments, and wearable terminals where multi-direction visibility is required.

• 480 × 480 Resolution

With a high resolution of 480 × 480, the display renders text, icons, and graphics clearly—suitable for user interfaces and information display in a variety of applications.

• MIPI Interface

Equipped with a high-speed MIPI interface, enabling efficient data transfer and easy integration into high-performance systems.

• Brightness: 350 cd/㎡

With a brightness of 350 cd/㎡, the display ensures stable visibility in indoor environments, providing clear readability for industrial monitors and control devices during extended use.

• Wide Viewing Angle (All Directions)

The wide viewing angle ensures excellent readability from all directions, suitable for multi-user environments and applications requiring visibility from multiple angles.
