4.0" Square TFT LCD Module (720 x 720) High Resolution Type [ST0395B3W-RSLW-F]

Name: 4.0" Square TFT LCD Module (720 x 720) High Resolution Type [ST0395B3W-RSLW-F]
Brand: SantekスタンダードTFT LCD
Availability: InStock

4.0" Square TFT LCD Module (720 x 720) High Resolution Type [ST0395B3W-RSLW-F]

Product variants

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping

SKU:

Spec Overview

Size	4.0"
Resolutions	720 x 720
Panel Type	Square
Santek Model No.	ST0395B3W-RSLW-F

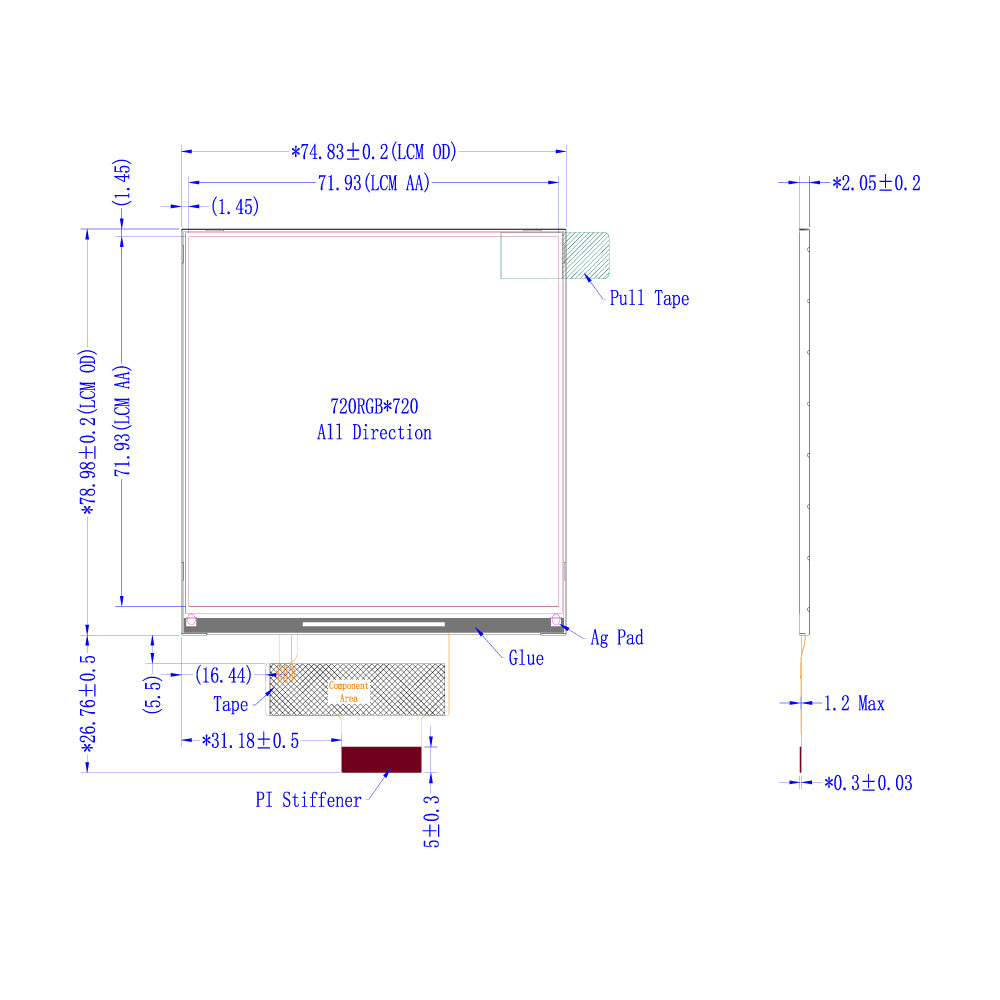

Module Size (W x H x T mm)	74.83 x 78.98 x 2.05
Active Area (W x H mm)	71.93 x 71.93
Interface	MIPI
Brightness	300 cd/㎡
Operating Temperature	-20 to 70°C
Viewing Angle	Wide (All Directions)

• Santek 4.0-inch Square Display

The 4.0-inch square display features a wide viewing angle, making it ideal for industrial devices, control panels, wearable terminals, and measuring instruments where multi-direction visibility is required.

• 720 × 720 High-Resolution Display

With a high resolution of 720 × 720, the display renders text, icons, and graphics clearly, suitable for user interfaces and applications requiring detailed visual output.

• MIPI Interface

Equipped with a high-speed MIPI interface, enabling efficient data transfer and easy integration into high-performance systems.

• Brightness: 300 cd/㎡

With a brightness of 300 cd/㎡, the display ensures stable readability in indoor environments, providing clear visibility for industrial monitors and control devices during extended use.

• Wide Viewing Angle (All Directions)

The wide viewing angle ensures excellent readability from all directions, suitable for multi-user environments and applications requiring visibility from multiple angles.
