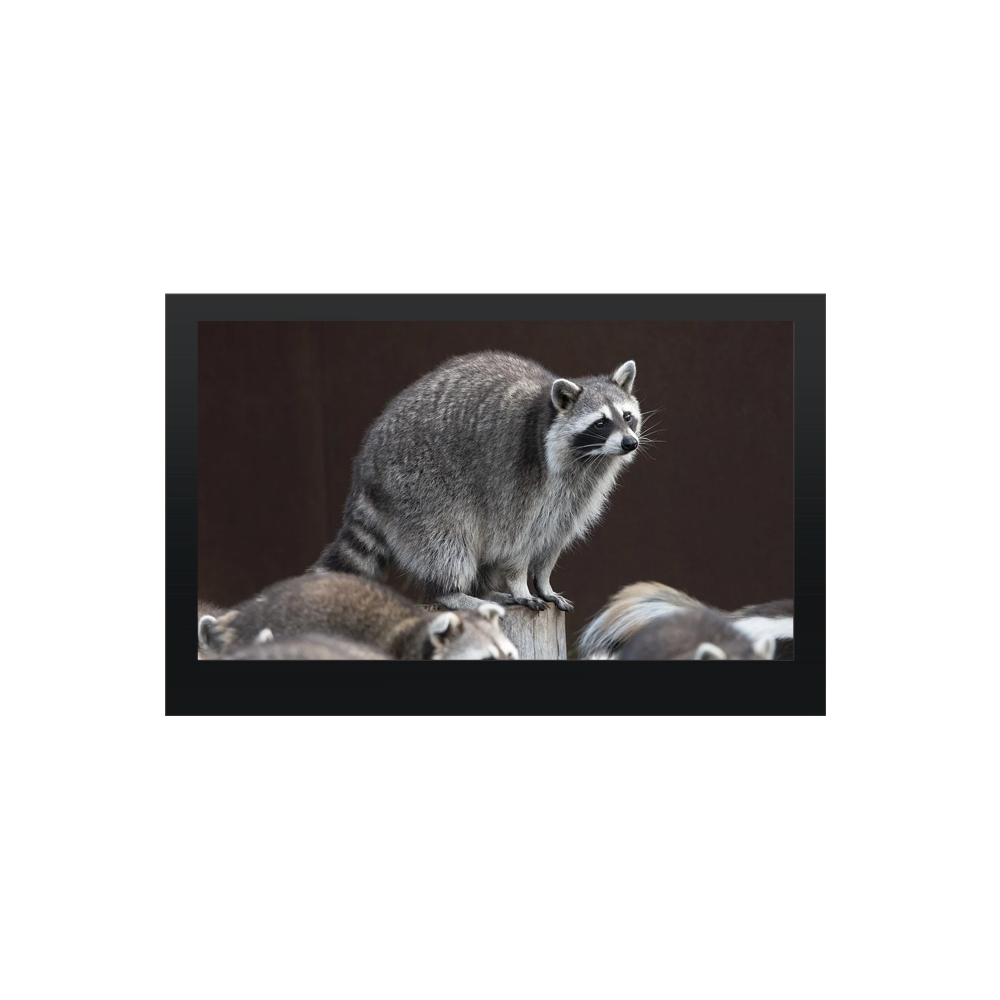

4.3" TFT LCD Module (480 x 272) [ST0430E2W-RSLW-F]

4.3" TFT LCD Module (480 x 272) [ST0430E2W-RSLW-F]

Important Note: Currently,our direct shopping page is designed for orders from Japan. However,we welcome orders from customers outside of Japan. Please submit a direct inquiry using the form "Request Quotation / Other Inquiry" or send an email to s.shop@santekdisplay.com.

Controller Board and LCD Kit are also available formost of our Santek LCD Modules. Please contact us for inquiry.

Contact Us for Shopping

SKU:




Spec Overview

Size 4.3"
Resolutions 480 x 272
WQVGA (Wide-QVGA)
Santek Model No. ST0430E2W-RSLW-F

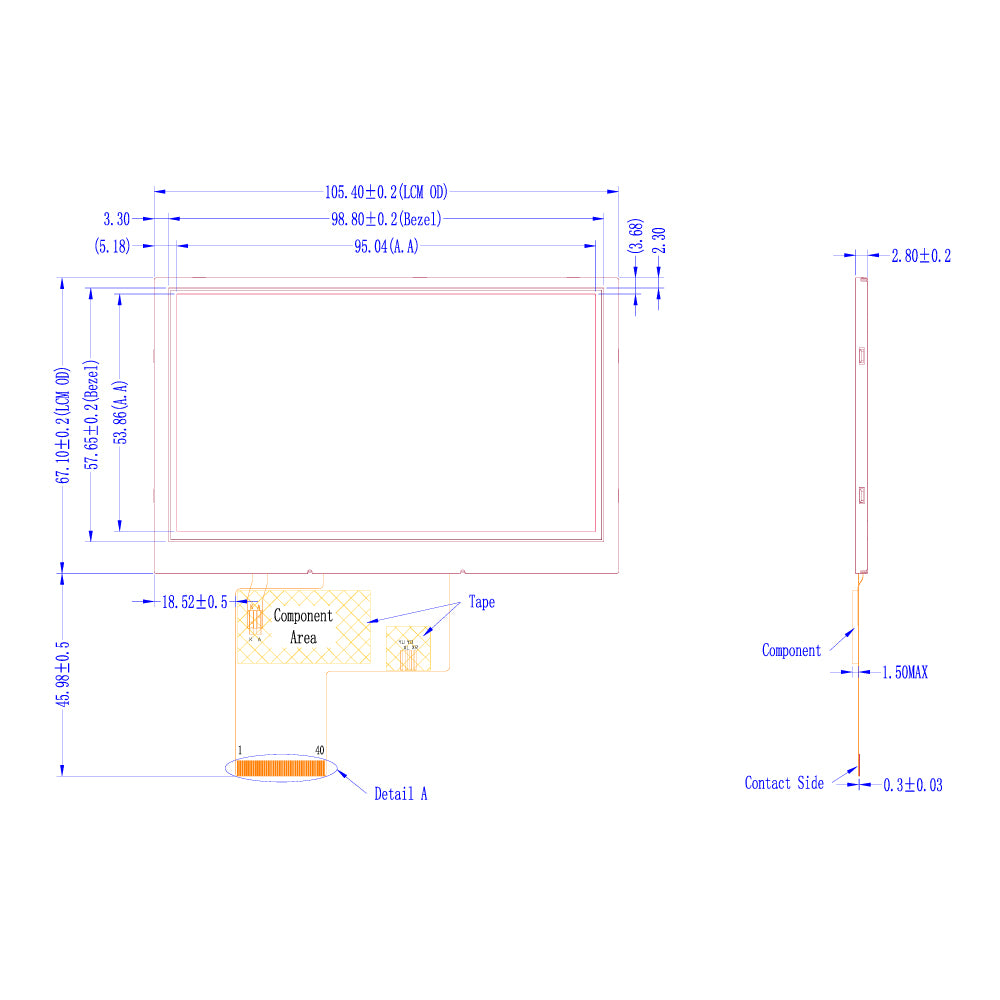

Module Size
(W x H x T mm)
105.40 x 67.10 x 3.93
Active Area
(W x H mm)
95.04 x 53.86
Interface RGB 24 bits
Brightness    400 cd/㎡
Operating Temperature -20 ~ 70 °C
Viewing Angle 6 o'clock
(Good Viewing Angle)
